CLEARANCE/MARKER LAMP - RED - SEALED 2-BULB

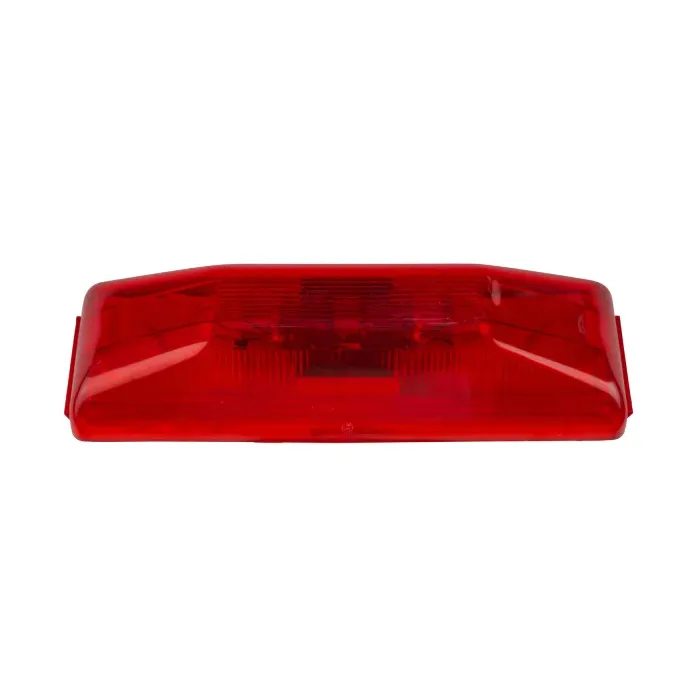

Grote 46742 Red 4" Rectangular Double-Bulb Clearance Marker Light

The Grote 46742 is a reliable, high-performance signaling solution designed specifically for narrow mounting applications on trucks and trailers. This 12-volt incandescent lamp features a hermetic lens-to-housing seal, which creates a permanent, weather-tight barrier against moisture, road salt, and dust—preventing the internal corrosion that often leads to lighting failure.

Engineered for durability, this marker light is equipped with a 12,000+ hour bulb life, significantly reducing maintenance costs and downtime for your fleet. Its versatile design meets P2 and P3 requirements, and when mounted at a 45-degree angle, it achieves a PC rating, providing full 180° visibility. Compatible with Grote’s Ultra-Blue-Seal® (UBS) pigtails, this lamp ensures a secure, corrosion-proof electrical connection every time.

Key Features:

• Double-Bulb Reliability: Features two 2-candlepower bulbs for increased light output and redundancy.
• Hermetic Seal: Sonically welded polycarbonate lens and housing lock out environmental contaminants.
• Narrow Mount Design: Slim rectangular profile (approx. 3.79" x 1.2") is perfect for trailers with limited mounting space.
• PC-Rated Visibility: Meets PC function requirements when mounted at a 45° angle, serving as both a clearance and side marker light.
• UBS Compatible: Designed for use with double-seal Ultra-Blue-Seal® pigtails to prevent moisture wicking.
• Rugged Materials: High-impact red polycarbonate lens and housing stand up to road debris and UV exposure.

Specifications:

• Part Number: 46742
• Color: Red
• Material: Polycarbonate Lens & Housing
• Voltage/Amperage: 12V / .66A
• Bulb Type: (2) #193, 2 CP (12,000+ Hours)
• Connection Type: 2-Male Pin (Accepts UBS Pigtails)
• Mounting Type: Bracket (Fits 43780, 43783, or 43850)
• Regulations: FMVSS 108; P2, P3, PC
• VMRS Code: 034-004-021
• Warranty: 1-Year Grote Warranty
