CLEARANCE/MARKER LAMP - RED - SUPERNOVA® LED THIN-LINE

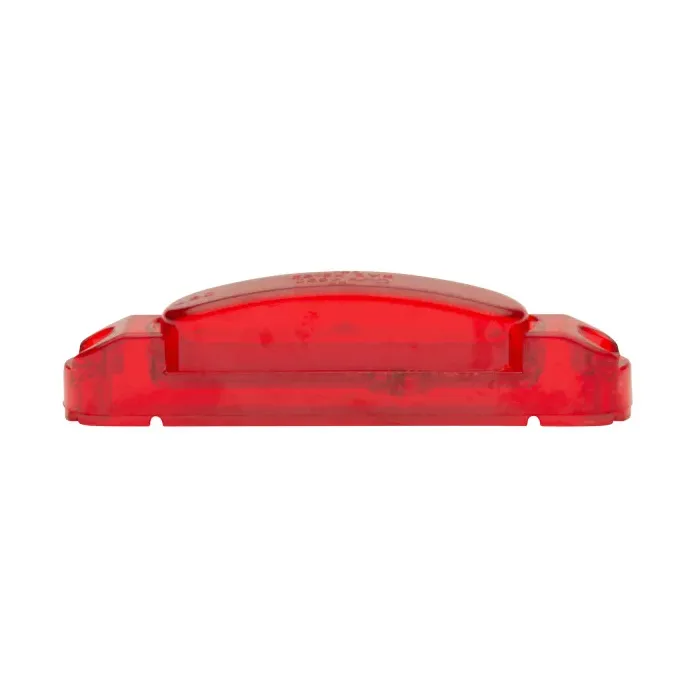

Grote 46922 SuperNova® Thin-Line Red LED Clearance Marker Light (Faston Tab, Narrow Rail)

The Grote 46922 SuperNova® Thin-Line Red LED Clearance Marker Light is a rugged, low-profile lamp specifically designed to fit narrow rails and channels where space is limited. This rectangular light maintains an extremely thin form factor while providing a bright, reliable Red LED signal.

Part of the SuperNova® Thin-Line series, the 46922 is built for superior endurance:

• Thin-Line Design: The slim profile (Approx. 5-5/16" x 7/8") is engineered to fit a wide variety of narrow channels and thin rails, minimizing projection and damage risk.
• Ultimate Protection: Features Encapsulant Potting for total circuit-board protection against vibration, shock, and corrosion, significantly increasing the light's service life.
• Fast Connection: Connects via a Faston Tab, ensuring a quick and secure electrical connection.
• Sealed for Corrosion: Designed to use Grote's UBS Double-Seal Pigtail for maximum defense against moisture and corrosion (pigtail sold separately).
• Energy Efficient: Operates on 12V DC with a low current draw of just 0.07A.

Choose the Grote 46922 for a dependable, sealed, and extremely space-efficient Red LED marker light solution.

Key Features & Specifications:

• SKU: 46922
• Product Line: SuperNova® Thin-Line LED
• Type: Clearance/Marker Lamp (P2 Rated)
• Color/Lens: Red
• Shape/Size: Rectangular / Thin-Line (Approx. 5.31" Wide)
• Voltage/Amps: 12V DC / 0.07 Amps
• Mounting: Bracket Mount
• Connection: Faston Tab
• Durability: Encapsulant Potted, UBS Double-Seal Pigtail Compatible
• Compliance: Meets FMVSS 108 (P2 Rated).
