CLEARANCE/MARKER LAMP - YELLOW - SUPERNOVA® LED SEALED TURTLEBACK® II

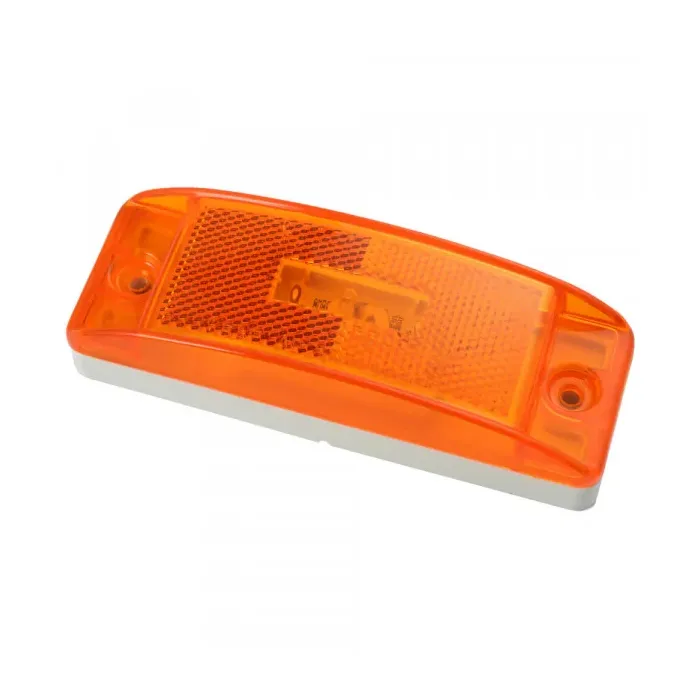

Grote 47073 SuperNova® Turtleback® II Amber LED PC Marker Light (Male Pin, 10-Year Warranty)

The Grote 47073 SuperNova® Sealed Turtleback® II Amber LED Clearance Marker Light is a premium, heavy-duty lamp offering ultimate durability and versatile PC Rated compliance. This rectangular light is built using the famous Turtleback® II design combined with Grote's high-performance SuperNova® LED technology.

Engineered for use in harsh environments, the 47073 is designed to last a decade:

• PC Rated Corner Visibility: Meets the requirements for both side marker and clearance functions simultaneously when mounted at a 45° angle, simplifying corner lighting compliance. (Note: Not designed for vertical mount.)
• Extreme Sealing: Features Encapsulant Potting for total circuit-board protection against shock and vibration, combined with a Hermetic lens-to-housing seal against moisture.
• Corrosion Resistance: Tin-plated, solid-brass terminals are sealed to the housing, eliminating corrosion and leak paths for unmatched electrical reliability.
• Plug-and-Go® Connection: Connects via a Male Pin terminal, utilizing Grote's UBS double-seal pigtails (pigtail not included) for a superior, moisture-proof seal.

Choose the Grote 47073 for a long-lasting, heavy-duty, and PC-compliant Amber LED marker light, backed by an exceptional 10-Year Warranty.

Key Features & Specifications:

• SKU: 47073
• Product Line: SuperNova® Sealed Turtleback® II LED
• Type: PC Rated Combination Clearance/Side Marker (P2, PC, A)
• Color/Lens: Amber (Yellow)
• Shape/Size: Rectangular (Approx. 5.88" x 2")
• Voltage/Amps: 12V DC / 0.06 Amps (P2 Function)
• Mounting: Bracket Mount
• Connection: Male Pin (Uses UBS Double-Seal Pigtail)
• Durability: Encapsulant Potted, Hermetic Seal, Tin-Plated Brass Terminals
• Warranty: 10 Years.
