CLEARANCE/MARKER LAMP - YELLOW - SUPERNOVA® LED

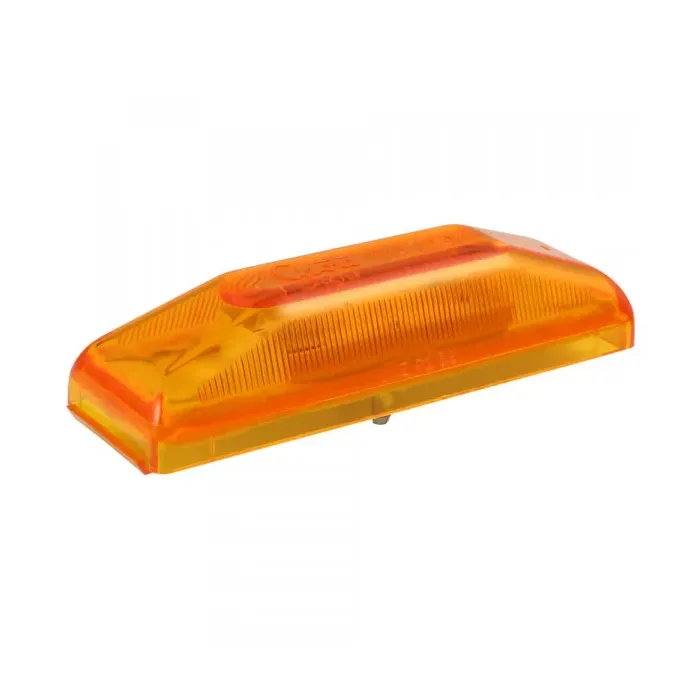

Grote 47093 SuperNova® 3" Amber LED PC Clearance Marker Light (Plug-and-Go®, 12V)

The Grote 47093 SuperNova® 3-Inch Amber LED PC Clearance Marker Light is a premium, high-compliance rectangular lamp designed for secure corner signaling. This light is PC Rated, fulfilling both side marker and clearance functions when mounted at a 45° angle, ensuring wide-angle visibility with a powerful Amber LED output.

The 47093 combines ultimate visibility with maximum durability:

• PC Rated Corner Visibility: Fully PC Rated, essential for legal compliance at the corners of trailers and truck bodies.
• Plug-and-Go® Connection: Features an Advanced Pin Connection System and uses the same UBS double-seal pigtail as the incandescent version (pigtail not included) for a quick, moisture-proof LED upgrade.
• Ultimate Protection: Features Encapsulant Potting for total circuit board protection against shock, vibration, and moisture.
• Hermetic Seal: A Hermetic lens-to-housing seal ensures the internal components remain completely dry and protected from road grime.
• Efficient Power: Operates reliably on 12V DC with a low current draw of just 0.06A.

Choose the Grote 47093 for a highly compliant, durable, and easily retrofitted Amber LED corner light, backed by a 10-Year Warranty.

Key Features & Specifications:

• SKU: 47093
• Product Line: SuperNova® LED
• Type: PC Rated Clearance/Marker Lamp (P2, PC)
• Color/Lens: Amber (Yellow)
• Shape/Size: Rectangular (Approx. 3.79" x 1.25")
• Voltage/Amps: 12V DC / 0.06 Amps
• Mounting: Bracket Mount Compatible (Requires bracket/screw mount)
• Connection: Male Pin (Plug-and-Go® Compatible)
• Durability: Encapsulant Potted, Hermetic Seal
• Compliance: PC Rated
• Warranty: 10 Years.
