CLEARANCE/MARKER LAMP - 2IN - RED - SUPERNOVA® LED

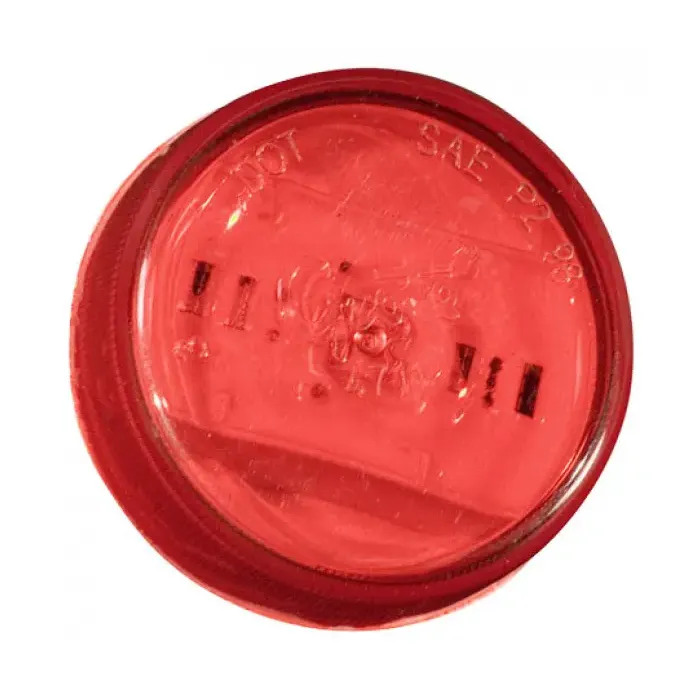

Grote 47112 SuperNova® 2" Round Red LED Clearance Marker Light (12V)

The Grote 47112 SuperNova® 2-inch Red LED Clearance Marker Light is engineered for superior safety, durability, and minimal maintenance on all heavy-duty vehicles and trailers. Part of Grote’s premium SuperNova® line, this lamp delivers dependable Red LED illumination while drawing an ultra-low 0.06 Amp current at 12V DC.

Built to withstand the toughest road conditions, the Grote 47112 offers industry-leading protection features:

• Total Circuit Protection: Features Encapsulant Potting which completely seals the circuit board, providing total protection against severe road vibration and corrosive elements like road salt and moisture.
• Corrosion-Proof Sealing: Tin-plated, solid-brass terminals are hermetically sealed to the housing, eliminating electrical failure-causing leak paths for enhanced, long-term reliability.
• PC Capable: While rated P2/P3, this light also meets PC function when mounted at a 45° angle, offering versatile compliance for corners.
• Plug-and-Go® Retrofit: Designed with a standard PL-10 connection that uses the same UBS double-seal pigtail as incandescent versions, allowing for a quick, hassle-free LED upgrade.

Choose the Grote 47112 for a durable, compliant lighting solution that fits all popular 2-inch grommets and brackets, backed by an outstanding 10-Year Warranty.

Key Features & Specifications:

• SKU: 47112
• Product Line: SuperNova® LED
• Type: Clearance/Marker Lamp
• Color/Lens: Red
• Shape/Size: 2" Round (2-inch Diameter)
• Voltage/Amps: 12V DC / Ultra-low 0.06 Amps
• Durability: Encapsulant Potted, Hermetic Seal, Sealed Brass Terminals
• Mounting: Grommet or Bracket Mount
• Compliance: Meets FMVSS 108 (P2/P3 Rated, PC Capable).
• Connection: PL-10 (Plug-and-Go® Retrofit Capable)
• Warranty: 10 Years.
