CLEARANCE/MARKER LAMP - 2.5IN - RED - SUPERNOVA® LED - BEEHIVE

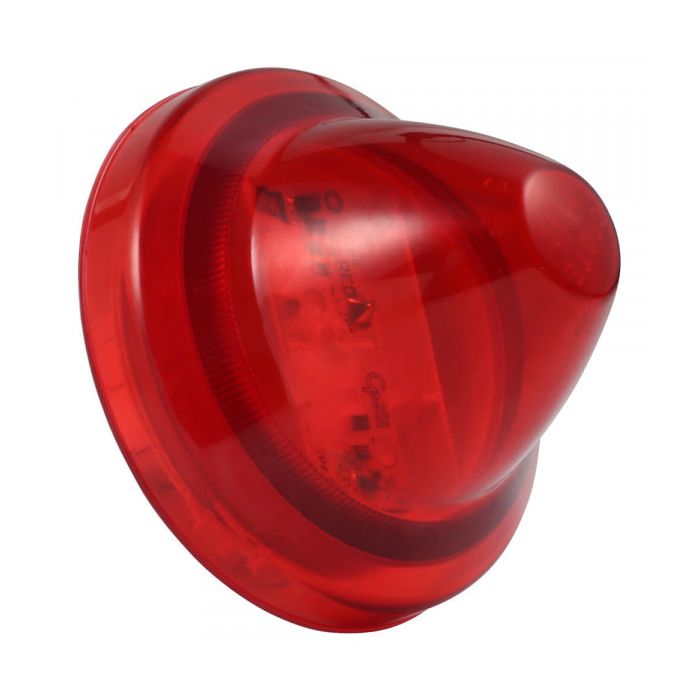

Grote 47222 SuperNova® 2.5" Red Beehive LED Clearance Marker Light (12V)

The Grote 47222 SuperNova® 2.5" Red Beehive LED Clearance Marker Light is engineered for maximum performance, visibility, and longevity in the toughest heavy-duty applications. Part of Grote’s premium SuperNova® line, this lamp features the recognizable Beehive lens design, providing exceptional Red LED signaling power while operating efficiently on 12V DC with an ultra-low 0.06 Amp current draw.

Designed to eliminate common failure points in commercial lighting, the Grote 47222 offers unparalleled durability and convenience:

• Total Circuit Protection: Features Encapsulant Potting which completely seals the internal circuit board, providing total protection against severe road vibration, shock, and corrosive elements.
• Corrosion Resistance: Tin-plated, solid brass terminals are hermetically sealed to the housing, eliminating leak paths and ensuring a reliable electrical connection.
• Plug-and-Go® Retrofit: Designed with a PL-10 connection to use the same UBS double-seal pigtail as incandescent versions, allowing for a quick, hassle-free LED upgrade.
• Versatile Mounting: Compatible with both grommet and bracket mount installations.

The P2-rated Grote 47222 meets all FMVSS 108 compliance standards, making it the superior choice for dependable side marker and clearance lighting.

Key Features & Specifications:

• SKU: 47222
• Product Line: SuperNova® LED
• Type: Clearance/Marker Lamp
• Shape/Style: Beehive (Cone/Dome)
• Color/Lens: Red
• Shape/Size: 2.5" Round (2 1/2" Diameter)
• Voltage/Amps: 12V DC / Ultra-low 0.06 Amps
• Durability: Encapsulant Potted, Hermetic Seal, Sealed Brass Terminals
• Mounting: Grommet or Bracket Mount
• Connection: PL-10 (Plug-and-Go® Retrofit Capable)
• Compliance: Meets FMVSS 108 (P2 Rated).
• Warranty: Up to 10 Years.
