- Product Line: SuperNova® LED
- Type: Clearance/Marker Lamp
- Shape/Style: Beehive (Cone/Dome)
- Color/Lens: Amber (Yellow)
- Shape/Size: 2.5" Round (2 1/2" Diameter)
- Voltage/Amps: 12V DC / Ultra-low 0.06 Amps
- Durability: Encapsulant Potted, Hermetic Seal, Sealed Brass Terminals
- Mounting: Grommet or Bracket Mount
- Connection: PL-10 (Plug-and-Go® Retrofit Capable)
- Compliance: Meets FMVSS 108 (P2 Rated).
- Warranty: 10 Years.
SKU
47223
Manufactures SKU
GROTE 47223

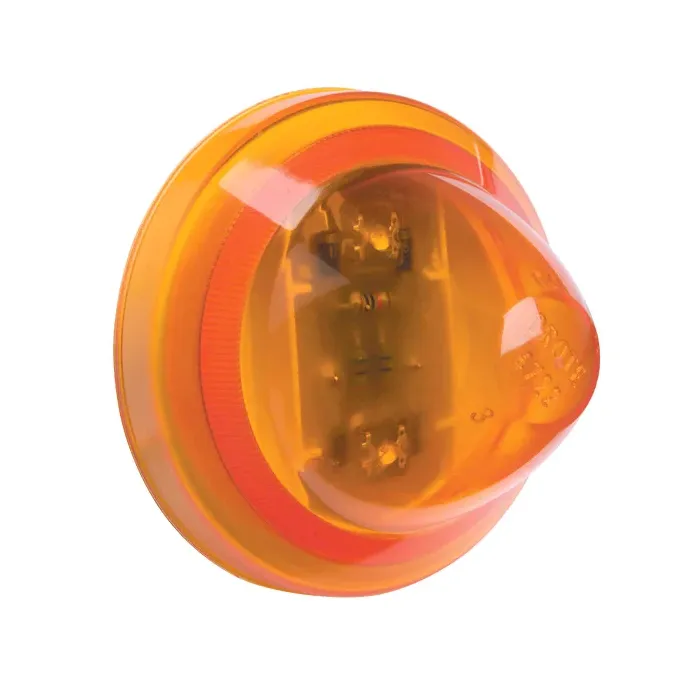

Grote 47223 SuperNova® 2.5" Amber Beehive LED Clearance Marker Light (12V)
$11.45
EA
The Grote 47223 SuperNova® 2.5" Amber Beehive LED Clearance Marker Light is engineered for maximum performance and superior longevity in the toughest heavy-duty applications. Part of Grote’s premium SuperNova® line, this lamp features the classic Beehive lens design, providing exceptional Amber LED signaling power while operating efficiently on 12V DC with an ultra-low 0.06 Amp current draw.
Designed to eliminate common failure points in commercial lighting, the Grote 47223 offers unparalleled durability and convenience:
- Total Circuit Protection: Features Encapsulant Potting which completely seals the internal circuit board, providing total protection against severe road vibration, shock, and corrosive elements like road salt.
- Corrosion Resistance: Tin-plated, solid brass terminals are hermetically sealed to the housing, eliminating leak paths and ensuring a reliable electrical connection.
- Plug-and-Go® Retrofit: Designed with a PL-10 connection to use the same UBS double-seal pigtail as incandescent versions, allowing for a quick, hassle-free LED upgrade.
- Versatile Mounting: Compatible with both grommet and bracket mount installations.
The P2-rated Grote 47223 meets all FMVSS 108 compliance standards, making it the superior choice for dependable side marker and clearance lighting, backed by an impressive 10-Year Warranty.
Features & Benefits
Current Amp
0.06
Functionality
Clearance Marker
Housing Material
Polycarbonate
Lens Color
AMBER
Lens Material
Polycarbonate
Lens Shape
Beehive
Mount Type
Grommet Mount
Compliance Family
FMVSS 108
VMRS
FMVSS 108
Warranty
10-Year
Shipping Weight (lbs)
0.120000
Total Height
1.94
Total Width
2.5
