CLEARANCE/MARKER LAMP - 2.5IN - RED - SUPERNOVA® LED - PC RATED

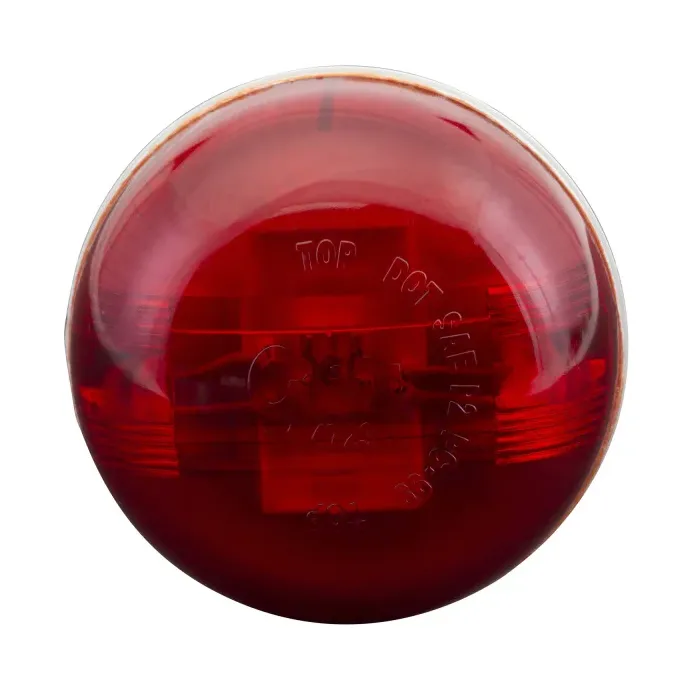

Grote 47232 SuperNova® Red LED Clearance/PC Marker Light - 2.5" Round (12V)

The Grote 47232 SuperNova® Red LED Clearance Marker Light sets the standard for fleet durability and versatile visibility. This premium 2.5-inch round lamp is PC Rated, enabling it to function simultaneously as both a side marker and clearance light when mounted at the required 45-degree angle, maximizing safety compliance at corners.

Part of Grote’s elite SuperNova® product line, this Red LED light operates on 12V DC with an extremely low 0.06 Amp current draw. The 47232 is engineered with multiple layers of protection for an exceptional lifespan:

• Total Circuit Protection: Features Encapsulant Potting which completely seals the circuit board, providing total protection against severe road vibration, shock, and corrosive materials like road salt.
• Corrosion-Proof Sealing: Tin-plated, solid brass terminals are hermetically sealed to the housing, eliminating leak paths for superior electrical reliability and moisture resistance.
• Plug-and-Go® Retrofit: Designed with a PL-10 connection to use the same UBS double-seal pigtail as incandescent versions, allowing for a quick, hassle-free LED upgrade without re-wiring.

Suitable for both grommet and bracket mount applications, the Grote 47232 meets all FMVSS 108 (P2/PC) standards and is backed by a robust 10-Year Warranty.

Key Features & Specifications:

• SKU: 47232
• Product Line: SuperNova® LED
• Type: PC Rated Combination Clearance/Side Marker Lamp
• Color/Lens: Red
• Voltage/Amps: 12V DC / Ultra-low 0.06 Amps
• Shape/Size: 2.5" Round (2 1/2" Diameter)
• Durability: Encapsulant Potted, Hermetically Sealed Terminals
• Mounting: Grommet or Bracket Mount
• Connection: PL-10 (Plug-and-Go® Retrofit Capable)
• Compliance: Meets FMVSS 108 (PC Rated).
• Warranty: 10 Years.
