CLEARANCE/MARKER LAMP - 2.5IN - RED - W/GRAY FLANGE -SUPERNOVA® LED - PC RATED

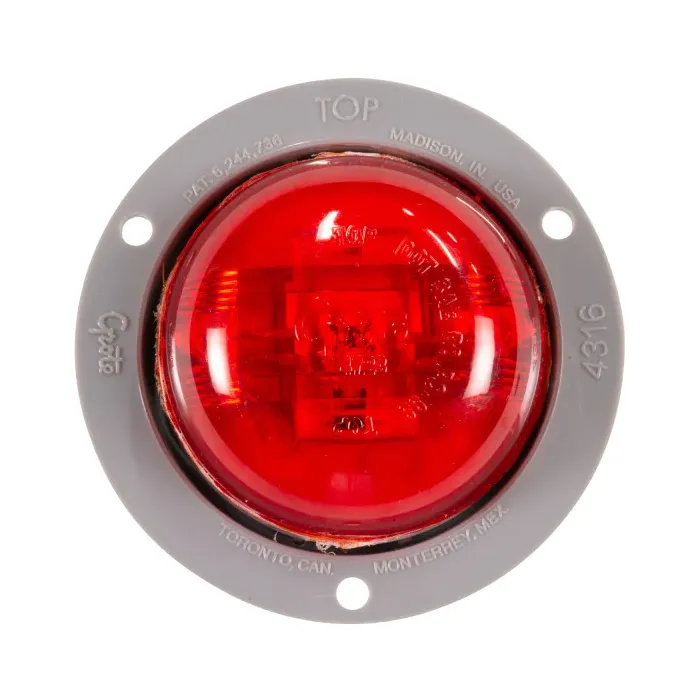

Grote 47372 SuperNova® Red LED Clearance/PC Marker Light w/ Gray Flange (12V)

The Grote 47372 SuperNova® Red LED Clearance Marker Light is the industry's most durable and reliable lighting solution for corner mounting and side panel installations. This premium 2.5-inch round lamp is factory-sealed to a Gray Theft-Resistant Flange, allowing for direct mounting to the side of a trailer without creating leaks.

This light is PC Rated, meaning it legally functions as both a side marker and clearance light simultaneously when mounted at the required 45-degree angle, ensuring maximum visibility and FMVSS 108 compliance for corners.

Built for the most demanding heavy-duty environments, the Grote 47372 offers superior longevity:

• Total Circuit Protection: Features Encapsulant Potting which completely seals the circuit board, providing total protection against severe road vibration, shock, and corrosive elements.
• Corrosion-Proof Design: Tin-plated, solid brass terminals are hermetically sealed to the housing, eliminating moisture leak paths for superior electrical reliability.
• Flange Mount Advantage: The integrated Gray Flange provides a secure, theft-resistant bracket mount for robust, permanent installation.
• Plug-and-Go® Retrofit: Designed with a Female Pin connection (PL-10 compatible) to use the same UBS double-seal pigtail as incandescent versions for a quick, hassle-free LED upgrade.

Operates efficiently on 12V DC with an ultra-low 0.06 Amp current draw and is backed by Grote’s robust 10-Year Warranty.

Key Features & Specifications:

• SKU: 47372
• Product Line: SuperNova® LED
• Type: PC Rated Combination Clearance/Side Marker Lamp
• Color/Lens: Red
• Voltage/Amps: 12V DC / Ultra-low 0.06 Amps
• Shape/Size: 2.5" Round
• Mounting: Gray Flange/Bracket (Direct Mount, Theft-Resistant)
• Durability: Encapsulant Potted, Hermetically Sealed Terminals
• Connection: Female Pin (PL-10, Plug-and-Go® Retrofit Capable)
• Compliance: Meets FMVSS 108 (PC Rated).
• Warranty: 10 Years.
