SKU
47503
Manufactures SKU
GROTE 47503
CLEARANCE/MARKER LAMP - 3IN x 2IN - YELLOW - LED MARKER
$11.20
EA

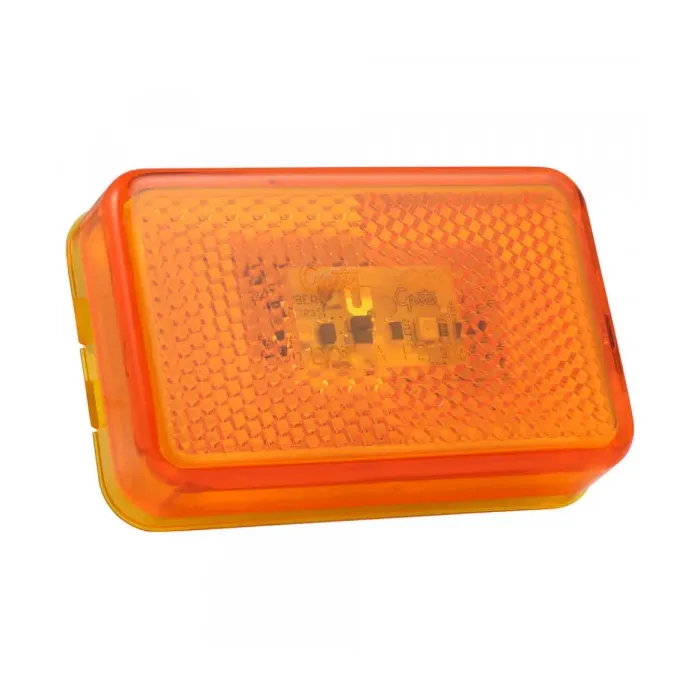

Grote 47503 Amber SuperNova® LED Clearance Marker – Integrated Reflex Reflector
The Grote 47503 is engineered for maximum durability and superior photometric performance. As part of the elite SuperNova® line, this lamp features fully encapsulated potting, a specialized process where the internal circuit board is completely sealed in a protective compound. This provides the ultimate defense against moisture, heavy road vibration, and mechanical shock, significantly outlasting standard LED markers.
Designed for efficiency and safety, the 47503 functions as a clearance lamp, side marker, and a Class "A" reflex reflector. The integrated reflector provides an extra layer of safety, ensuring your vehicle is visible to other motorists even when the power is turned off. With its hermetic lens-to-housing seal and corrosion-resistant tin-plated terminals, this light is built to survive the harshest environments. It is a perfect "Plug-and-Go®" LED upgrade for existing 19-series incandescent lamps.
Key Features:
The Grote 47503 is engineered for maximum durability and superior photometric performance. As part of the elite SuperNova® line, this lamp features fully encapsulated potting, a specialized process where the internal circuit board is completely sealed in a protective compound. This provides the ultimate defense against moisture, heavy road vibration, and mechanical shock, significantly outlasting standard LED markers.
Designed for efficiency and safety, the 47503 functions as a clearance lamp, side marker, and a Class "A" reflex reflector. The integrated reflector provides an extra layer of safety, ensuring your vehicle is visible to other motorists even when the power is turned off. With its hermetic lens-to-housing seal and corrosion-resistant tin-plated terminals, this light is built to survive the harshest environments. It is a perfect "Plug-and-Go®" LED upgrade for existing 19-series incandescent lamps.
Key Features:
- 3-in-1 Multi-Functionality: Operates as a side marker, clearance lamp, and reflex reflector to simplify safety compliance.
- SuperNova® LED Technology: High-output LEDs offer a crisp amber signal with a low amp draw for reduced strain on your electrical system.
- Encapsulated Potting Protection: Completely sealed electronics for maximum resistance to vibration, shock, and water intrusion.
- Integrated Reflex Reflector: Built-in Class "A" reflector ensures passive visibility when the vehicle is unpowered.
- Hermetically Sealed: Sonically welded polycarbonate lens and housing prevent internal corrosion and water wicking.
- Corrosion-Resistant Terminals: Solid brass, tin-plated pins eliminate common leak paths and ensure a steady connection.
- Part Number: 47503
- Light/Lens Color: Amber
- Shape: Rectangular (approx. 4" x 1-1/2")
- Material: Polycarbonate Lens and Housing
- Voltage/Amperage: 12V / .06A
- Connection Type: 2-Pin Male (Accepts UBS Pigtails)
- Mounting Type: Bracket (Fits 43780, 43783, or 43850)
- Regulations: FMVSS 108; P2, A
- VMRS Code: 034-004-253
- Warranty: 10-Year Grote Warranty
Lens Color
Yellow
Shipping Weight (lbs)
0.120000
Total Height
0.91
Total Width
1.94
