CLEARANCE/MARKER LAMP - YELLOW - SUPERNOVA® LED - LOW-PROFILE

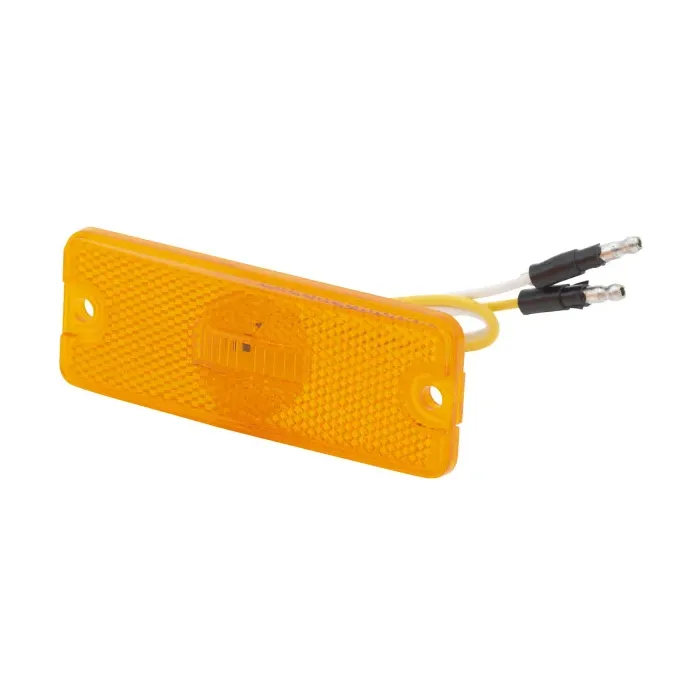

Grote 47733 Amber 1" x 4" Sealed Rectangular LED Clearance Marker Light

The Grote 47733 is a high-performance signaling solution engineered for durability in the most demanding environments. Featuring a fully sealed, hermetic lens-to-housing design, this LED light is sonically welded to create a permanent barrier against moisture, road salt, and debris, effectively preventing internal corrosion and extending the life of the unit.

Unlike standard markers, the 47733 uses encapsulant potting technology. By completely sealing the internal circuit board in a protective compound, Grote ensures that the light can withstand extreme road shock and heavy vibration without failing. Its slim, rectangular profile makes it an ideal choice for narrow mounting spaces on trucks and trailers. With a 12V low-amp draw and advanced optics, this light provides high-visibility amber signaling while meeting all FMVSS 108 P2 requirements.

Key Features:

• Sealed LED Performance: High-efficiency LEDs offer superior longevity and a crisp amber signal compared to incandescent bulbs.
• Encapsulant Potting: The circuit board is fully protected by a potting compound to defend against mechanical shock and vibration.
• Hermetically Sealed: Sonically welded polycarbonate lens and housing prevent water wicking and moisture intrusion.
• Streamlined Design: The 1" x 4" rectangular shape is perfect for trailers with limited mounting surface area.
• Advanced Connectivity: Features a standard 2-pin connection compatible with Ultra-Blue-Seal® (UBS) double-seal pigtails.
• Versatile Mounting: Fits industry-standard brackets for easy retrofitting or new installations.

Specifications:

• Part Number: 47733
• Light Color: Amber
• Lens Color: Amber
• Material: Polycarbonate Lens and Housing
• Voltage/Amperage: 12V / .06A
• Connection Type: 2-Pin Male
• Mounting Type: Bracket (Fits 43780, 43783, or 43850)
• Regulations: FMVSS 108; P2
• VMRS Code: 034-004-253
• Warranty: 10-Year Grote Warranty
