CLEARANCE/MARKER LAMP - RED - LOW PROFILE - BAR

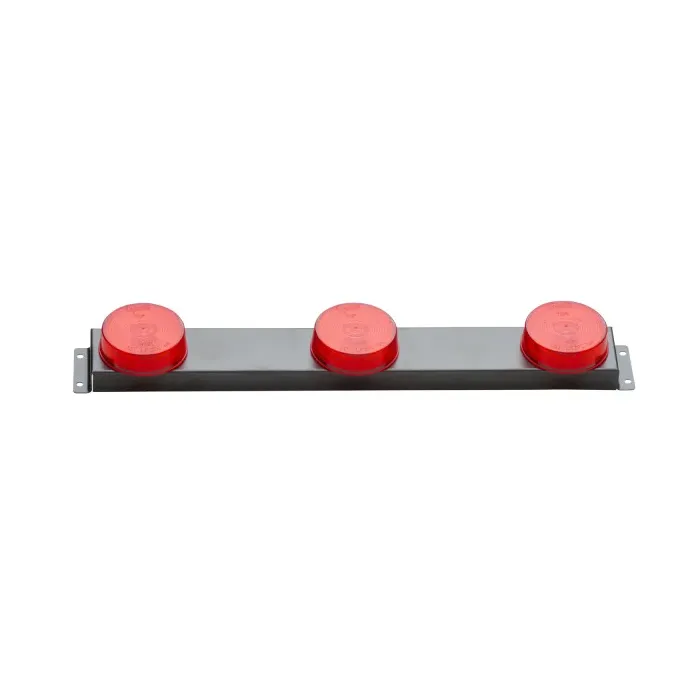

Grote 49142 Low-Profile Light Bar (Red, 3-Lamp Incandescent, Steel Bar, Twist-in)

The Grote 49142 Low-Profile Light Bar is a durable, traditional incandescent bar designed for mounting where space is limited. This Red light bar is built with a rugged steel bar (14.5" length) and utilizes three bulb-replaceable, 2.5-inch round lamps (such as Grote 45262 or 46792). The lamps feature a twist-in, locking design for easy bulb replacement and secure seating. The assembly includes a sealed UBS harness for a robust, weather-resistant electrical connection. This light bar meets FMVSS 108 P2 requirements and is screw-mounted.

Engineered for durable, low-profile, and serviceable incandescent lighting:

• Low-Profile Design: Ideal for narrow-rail or restricted mounting areas.
• Three Round Lamps: Uses three bulb-replaceable 2.5-inch round incandescent lamps.
• Twist-in Feature: Allows for easy, secure, and tool-free bulb replacement.
• Sealed Harness: Includes a durable, sealed pigtail (Blunt Cut/Ring Terminal) for improved weather resistance.
• Durable Construction: Rugged steel bar housing for long-term fleet use.

Choose the Grote 49142 for a robust, low-profile, 3-lamp red incandescent light bar with replaceable round lamps.

Key Features & Specifications:

• SKU: 49142
• Product Line: Low-Profile Light Bars (Round Series)
• Type: Clearance/Marker Light Bar
• Light Source: Incandescent (3x 2 CP Bulbs)
• Color/Lens: Red (Red Lenses)
• Shape/Size: 14.5-Inch Rectangular Bar
• Connection: Blunt Cut, Ring Terminal
• Mounting Type: Screw Mount
• Feature: Low-Profile, Twist-in Locking Lamps, Sealed UBS Harness, FMVSS P2
• Amperage: 1.8A (Total Draw)
