SKU
49252
Manufactures SKU
GROTE 49252
CLEARANCE/MARKER LAMP - RED - 3IN CENTER - DUAL FUNCTION - LED
$19.55
EA

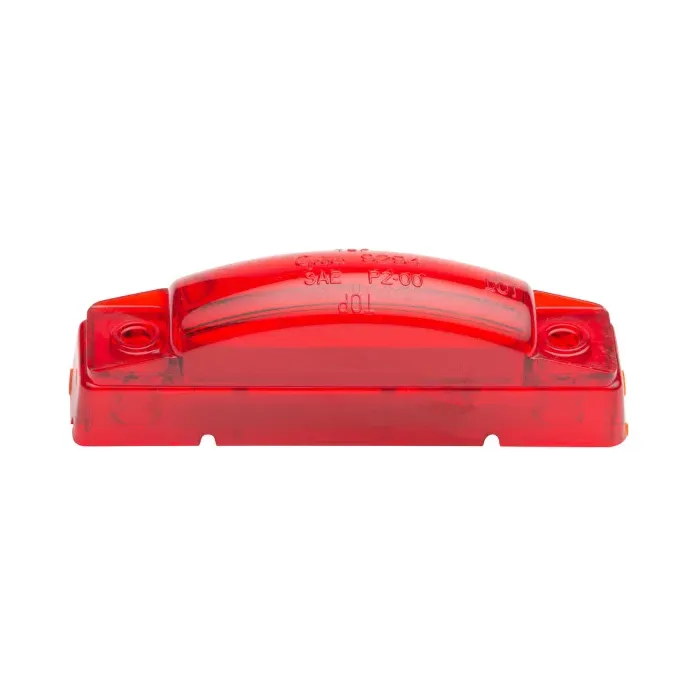

Grote 49252 Red SuperNova® Thin-Line Dual-Intensity LED Clearance Marker
The Grote 49252 is a high-performance signaling solution engineered for professional fleets and owner-operators who demand reliability. As part of the elite SuperNova® line, this light features dual-intensity capability, allowing it to function at two different brightness levels—perfect for specialized applications where both a marker and a higher-output signal are required.
Designed for longevity, the 49252 utilizes a hermetic lens-to-housing seal that is sonically welded to create a permanent, weather-tight barrier. To ensure the ultimate defense against road hazards, the internal circuit board is protected by encapsulant potting, which shields the electronics from extreme vibration, mechanical shock, and moisture intrusion. Its "Thin-Line" profile and 3-inch mounting centers make it a versatile choice for narrow rails or headers where space is at a premium.
Key Features:
The Grote 49252 is a high-performance signaling solution engineered for professional fleets and owner-operators who demand reliability. As part of the elite SuperNova® line, this light features dual-intensity capability, allowing it to function at two different brightness levels—perfect for specialized applications where both a marker and a higher-output signal are required.
Designed for longevity, the 49252 utilizes a hermetic lens-to-housing seal that is sonically welded to create a permanent, weather-tight barrier. To ensure the ultimate defense against road hazards, the internal circuit board is protected by encapsulant potting, which shields the electronics from extreme vibration, mechanical shock, and moisture intrusion. Its "Thin-Line" profile and 3-inch mounting centers make it a versatile choice for narrow rails or headers where space is at a premium.
Key Features:
- Dual-Intensity Function: Engineered to provide two levels of light output for versatile signaling applications.
- SuperNova® LED Reliability: High-efficiency diodes offer superior brightness with significantly lower power draw than incandescent lamps.
- Encapsulated Potting: The circuit board is fully sealed in a protective compound to withstand heavy road shock and vibration.
- Hermetic Sonic Weld: A permanent lens-to-housing seal prevents water wicking and internal corrosion.
- Thin-Line Design: Sleek, low-profile housing fits easily into narrow mounting spaces on truck cabs and trailers.
- Easy Installation: 3-inch center-to-center mounting holes and a standard 3-wire connection for seamless integration.
- Part Number: 49252
- Light/Lens Color: Red
- Shape: Thin-Line Rectangular
- Mounting Centers: 3" (Center-to-Center)
- Dimensions: Approx. 3-7/8" L x 1-1/4" H x 7/8" D
- Material: Polycarbonate Lens and Housing
- Voltage/Amperage: 12V / .06A
- Connection Type: 3-Wire (Hardwired)
- Regulations: FMVSS 108; P2
- VMRS Code: 034-004-253
- Warranty: 10-Year Grote Warranty
Lens Color
Red
Shipping Weight (lbs)
0.110000
Total Height
1.5
Total Width
4
