SKU
49253
Manufactures SKU
GROTE 49253
CLEARANCE/MARKER LAMP - YELLOW - 3IN CENTER - DUAL INTENSITY - LED
$19.55
EA

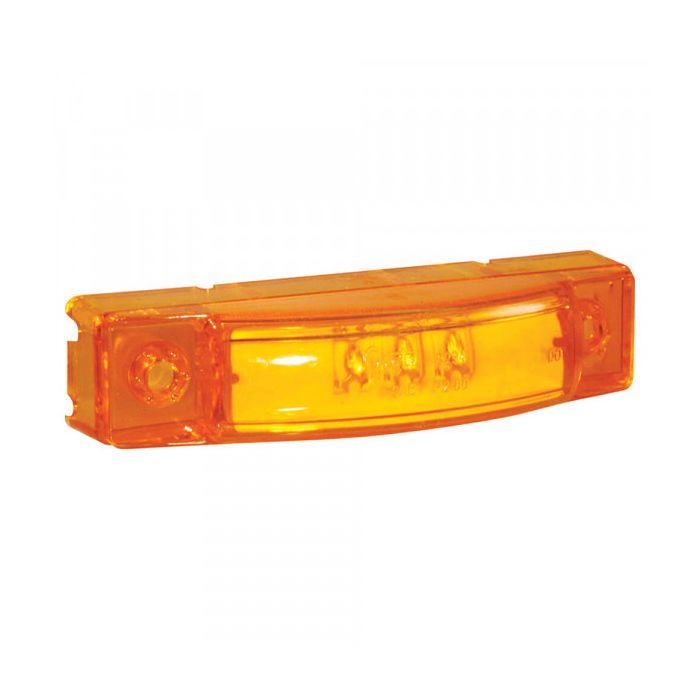

Grote 49253 Amber SuperNova® Thin-Line Dual-Intensity LED Clearance Marker
The Grote 49253 is a professional-grade signaling solution designed for the most demanding commercial applications. As part of the high-performance SuperNova® line, this light features dual-intensity capability, allowing it to operate at two different brightness levels. This makes it an ideal choice for specialized front and side signaling where both a standard marker and a high-output indicator are required.
Engineered for extreme longevity, the 49253 is built to survive the harshest road environments. It features a hermetic lens-to-housing seal that is sonically welded to keep out moisture and prevent internal corrosion. To protect against the primary causes of lighting failure, Grote utilizes encapsulant potting technology, which completely seals the circuit board in a specialized compound to defend against intense vibration and mechanical shock. Its "Thin-Line" design and 3-inch mounting centers make it perfect for narrow headers, rails, or cab mounting.
Key Features:
The Grote 49253 is a professional-grade signaling solution designed for the most demanding commercial applications. As part of the high-performance SuperNova® line, this light features dual-intensity capability, allowing it to operate at two different brightness levels. This makes it an ideal choice for specialized front and side signaling where both a standard marker and a high-output indicator are required.
Engineered for extreme longevity, the 49253 is built to survive the harshest road environments. It features a hermetic lens-to-housing seal that is sonically welded to keep out moisture and prevent internal corrosion. To protect against the primary causes of lighting failure, Grote utilizes encapsulant potting technology, which completely seals the circuit board in a specialized compound to defend against intense vibration and mechanical shock. Its "Thin-Line" design and 3-inch mounting centers make it perfect for narrow headers, rails, or cab mounting.
Key Features:
- Dual-Intensity Output: Engineered to provide two levels of light intensity for versatile signaling functions.
- SuperNova® LED Performance: High-efficiency diodes deliver a crisp amber signal with significantly lower power consumption than incandescent bulbs.
- Encapsulated Potting: The internal electronics are fully encased in a protective compound to withstand heavy road shock and vibration.
- Hermetically Sealed: The sonically welded polycarbonate lens and housing provide a permanent, waterproof barrier.
- Sleek Thin-Line Profile: Low-profile housing is designed to fit into narrow spaces on truck cabs and trailers.
- Industry Standard Mounting: Features 3-inch center-to-center mounting holes and a standard 3-wire connection for easy installation.
- Part Number: 49253
- Light/Lens Color: Amber
- Shape: Thin-Line Rectangular
- Mounting Centers: 3" (Center-to-Center)
- Dimensions: 3-7/8" L x 1-1/4" H x 7/8" D
- Material: Polycarbonate Lens and Housing
- Voltage/Amperage: 12V / .06A
- Connection Type: 3-Wire (Hardwired)
- Regulations: FMVSS 108; P2
- VMRS Code: 034-004-253
- Warranty: 10-Year Grote Warranty
Lens Color
Yellow
Shipping Weight (lbs)
0.110000
Total Height
1.75
Total Width
1
