CLEARANCE/MARKER - RED - LED - ROUND - MICRONOVA® PC WITH GROMMET

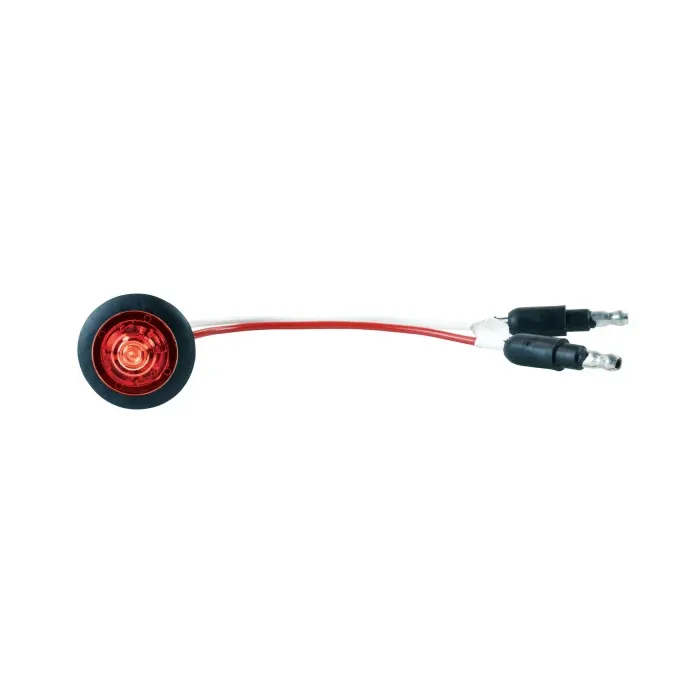

Grote 49332 MicroNova® Dot Red LED Clearance/PC Marker Light - 1" Grommet Mount (12V)

Achieve versatile, ultra-reliable safety lighting with the Grote 49332 MicroNova® Dot Red LED Clearance Marker Light. This premium lamp is PC Rated, allowing it to function simultaneously as both a side marker and front/rear clearance light when mounted at a 45° angle, ensuring maximum compliance and visibility for trucks and trailers.

Engineered with the demanding environment of heavy-duty transport in mind, this light features several key benefits:

• Low-Profile Design: The sleek, aerodynamic styling extends less than 3/8" from the mounted surface, making it highly resistant to damage and ideal for narrow applications.
• Simplified Installation: The Grommet Mount design installs easily into a standard 0.75" mounting hole using the included PVC grommet, requiring no exposed fasteners for a clean, secure, and tamper-resistant finish.
• High Efficiency: Operates efficiently on 12V DC while drawing an extremely low 0.05A of current, reducing load on your electrical system.

The Grote 49332 is built with high-impact acrylic and features hardwired connections with Standard .180" Male Bullet terminals (UBS) for superior electrical reliability and connection integrity.

Key Features & Specifications:

• SKU: 49332
• Product Line: MicroNova® Dot LED
• Type: PC Rated Clearance Marker (Side Marker/Clearance)
• Color/Lens: Red
• Voltage/Amps: 12V DC / Ultra-low 0.05 Amps
• Shape/Size: 1.13" Round Diameter (Fits 0.75" hole)
• Mounting: Grommet Mount (No fasteners required)
• Key Feature: Low-Profile design extends less than 3/8" from surface.
• Compliance: Meets FMVSS 108 (PC Rated).
• Connection: .180" Male Bullet Terminals (UBS).
• VMRS: 034-004-253.
