SKU
50972
Manufactures SKU
GROTE 50972
STOP/TURN/TAIL LAMP - RED - 3-STUD PETERBILT/CHEVY®/JEEP®/GMC® REPLACEMENT W/PIGTAIL
$29.34
EA

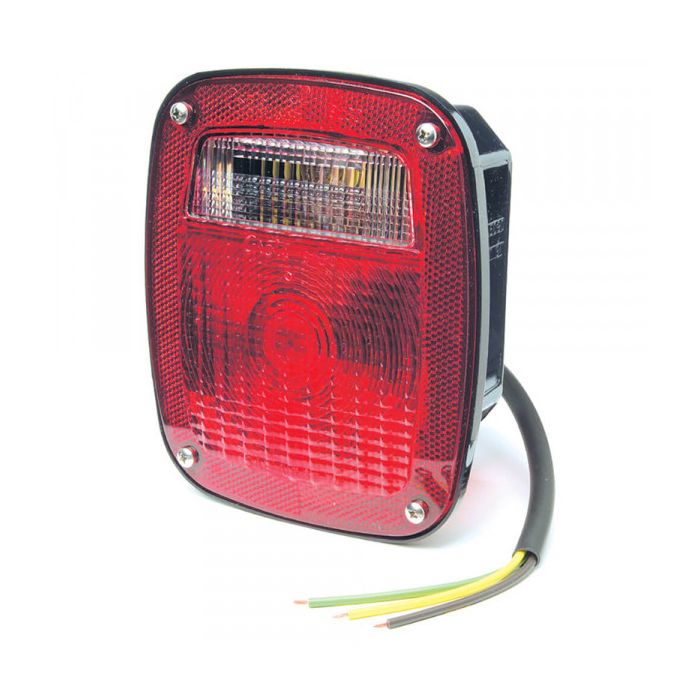

Grote 50972 Red Three-Stud Stop Tail Turn Light with Pigtail & License Window
The Grote 50972 is a multi-function, professional-grade signaling solution designed for vehicles that require a reliable, three-stud mounting pattern. This unit is an ideal "OEM-Style" replacement for Peterbilt®, Chevrolet®, GMC®, and Jeep® models, cross-referencing with part numbers such as Peterbilt 16-02600R/L and Chevrolet/GMC 370867/370868.
Equipped with an integrated license plate window and a built-in reflex reflector, the 50972 serves as a comprehensive safety light that meets FMVSS 108 standards. The lamp features a high-impact polycarbonate housing and an acrylic lens, protecting the internal incandescent bulbs from road debris and harsh weather. To simplify installation, this light includes a pre-cut 3-wire pigtail for easy splicing into your existing vehicle harness. Whether you're maintaining a classic truck or a modern fleet, the Grote 50972 provides the durability and visibility needed for long-term safety.
Key Features:
The Grote 50972 is a multi-function, professional-grade signaling solution designed for vehicles that require a reliable, three-stud mounting pattern. This unit is an ideal "OEM-Style" replacement for Peterbilt®, Chevrolet®, GMC®, and Jeep® models, cross-referencing with part numbers such as Peterbilt 16-02600R/L and Chevrolet/GMC 370867/370868.
Equipped with an integrated license plate window and a built-in reflex reflector, the 50972 serves as a comprehensive safety light that meets FMVSS 108 standards. The lamp features a high-impact polycarbonate housing and an acrylic lens, protecting the internal incandescent bulbs from road debris and harsh weather. To simplify installation, this light includes a pre-cut 3-wire pigtail for easy splicing into your existing vehicle harness. Whether you're maintaining a classic truck or a modern fleet, the Grote 50972 provides the durability and visibility needed for long-term safety.
Key Features:
- Vehicle Specific Fit: Direct replacement for Peterbilt® 16-02600R/L, Chevrolet®/GMC® 370867/370868, and Jeep® SF5457197/SF5457198.
- 5-in-1 Functionality: Integrated Stop, Tail, Turn, Rear Reflex, and License Plate Lamp (via side window).
- Rugged Construction: UV-resistant polycarbonate housing and acrylic lens for maximum impact protection.
- Easy Installation: Three-stud mounting pattern and pre-cut 3-wire pigtail allow for quick and secure attachment.
- Reliable Technology: Uses industry-standard 1157 and 1156 incandescent bulbs for high-intensity signaling.
- FMVSS 108 Compliant: Meets all federal safety requirements for lighting and visibility.
- Part Number: 50972
- Light Color: Red
- Shape: Rectangular (6.75")
- Dimensions: 6-3/4" H x 5-3/4" W x 2-7/8" D
- Material: Polycarbonate Housing / Acrylic Lens
- Voltage/Amperage: 12.8V / 2.1A (Stop) / .59A (Tail)
- Bulb Type: 1157 (Major/Minor), 1156 (License)
- Connection: 3-Wire Pigtail (Blunt Cut)
- Mounting: 3-Stud Mount
- Regulations: FMVSS 108 (A, I, L, R2, S, T)
- Warranty: 1-Year Grote Warranty
Lens Color
Red
Shipping Weight (lbs)
1.090000
Total Height
7.13
Total Width
5.13
