SKU
51022
Manufactures SKU
GROTE 51022
STOP/TURN/TAIL LAMP - RED - 4IN LAMP - MODULE W/SIDE MARKER - PASSENGER SIDE
$46.88
EA

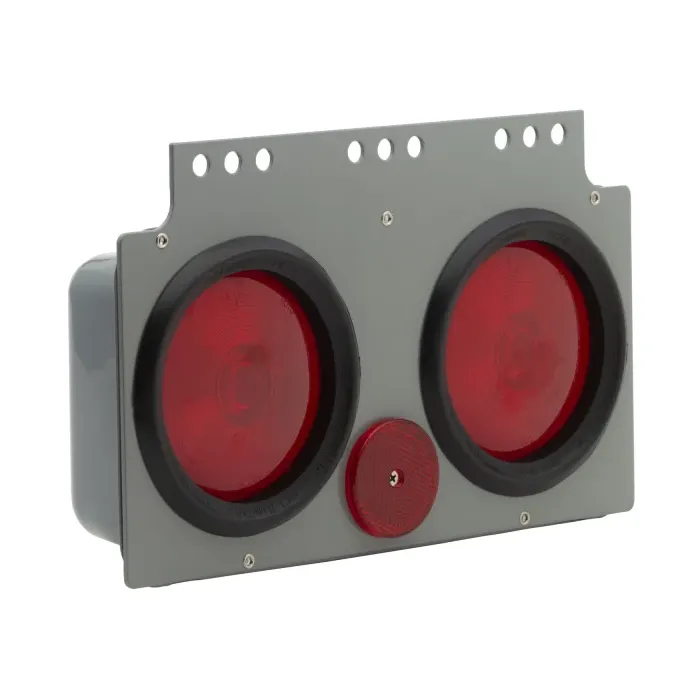

Grote 51022 Right-Hand 4" S/T/T Light Power Module with Side Marker Light
The Grote 51022 is a professional-grade, all-in-one signaling solution engineered for heavy-duty trucks and trailers. This right-hand (RH) power module combines essential Stop, Tail, and Turn functions with a built-in Side Marker Light and Reflector, ensuring 360-degree visibility and full FMVSS 108 compliance.
Built for the long haul, the 51022 features heavy-gauge steel construction for the plate and housing, providing unmatched structural integrity. At the heart of the unit are Torsion Mount® II 4" round sealed lamps, which utilize a specialized vibration-dampening design to protect bulb filaments from road shock, significantly extending service life. Whether you're operating in extreme weather or high-vibration environments, the Grote 51022 delivers consistent, "no-excuses" performance.
Key Features:
The Grote 51022 is a professional-grade, all-in-one signaling solution engineered for heavy-duty trucks and trailers. This right-hand (RH) power module combines essential Stop, Tail, and Turn functions with a built-in Side Marker Light and Reflector, ensuring 360-degree visibility and full FMVSS 108 compliance.
Built for the long haul, the 51022 features heavy-gauge steel construction for the plate and housing, providing unmatched structural integrity. At the heart of the unit are Torsion Mount® II 4" round sealed lamps, which utilize a specialized vibration-dampening design to protect bulb filaments from road shock, significantly extending service life. Whether you're operating in extreme weather or high-vibration environments, the Grote 51022 delivers consistent, "no-excuses" performance.
Key Features:
- Comprehensive Signaling: Integrated Stop/Tail/Turn functions plus a side marker and reflector for maximum safety.
- Torsion Mount® II Technology: Vibration-absorbing lamp design protects bulbs from mechanical shock and extends service life.
- Heavy-Duty Construction: Built with a heavy-gauge steel plate and housing to resist damage from road debris and harsh environments.
- Right-Hand Application: Specifically designed for right-side mounting to ensure proper side-marker orientation.
- Rugged Materials: Features high-impact polycarbonate lenses and a durable PVC grommet for long-term weather resistance.
- Standard Connection: Equipped with male/female bullet connectors for straightforward installation into your existing wiring system.
- Part Number: 51022
- Side: Right-Hand (RH)
- Light Color: Red
- Material: Polycarbonate Lens / Steel Housing / PVC Grommet
- Technology: Incandescent
- Bulb: 32 / 2 CP (Stop/Tail), (2) 2 CP (Side Marker)
- Voltage/Amperage: 12V / 0.48A – 2.1A
- Mounting Type: Screw Mount
- Regulations: FMVSS 108 (Functions: A, I, P2, S, T)
- VMRS Code: 034-002-022
- Warranty: 1-Year Grote Warranty
Lens Color
Red
Shipping Weight (lbs)
4.190000
Total Height
8
Total Width
13
