STOP/TURN/TAIL LAMP - RED - 24 VOLT - GROMMET-MOUNT - SUPERNOVA® LED OVAL LAMP

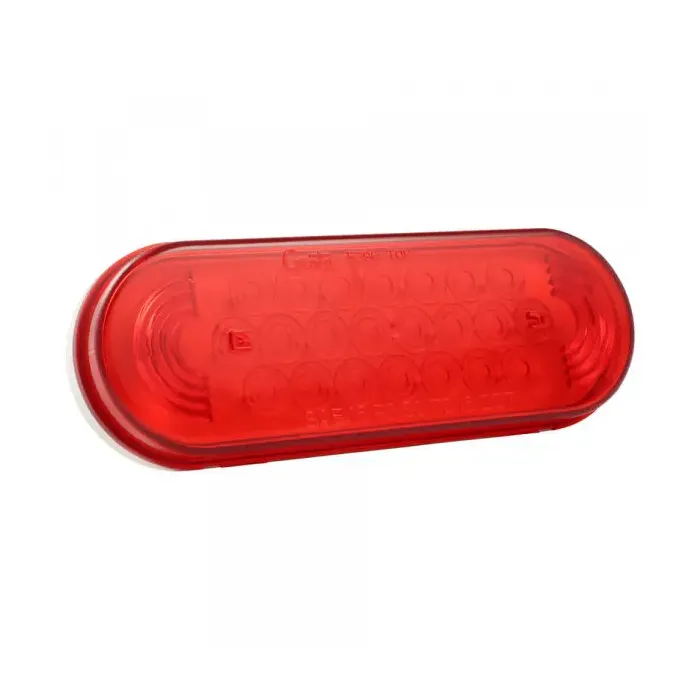

Grote 52072 Red 24V SuperNova® Oval LED Stop Tail Turn Light – Grommet Mount

The Grote 52072 is a high-performance signaling solution specifically designed for trucks, trailers, and specialized equipment operating on 24V electrical systems. As part of the elite SuperNova® line, this 6-inch oval light provides a crisp, instant-on signal that improves safety by giving following drivers more time to react.

Durability is the hallmark of the 52072. It features encapsulant potting technology, which completely seals the internal circuit board in a protective compound to defend against intense vibration, mechanical shock, and moisture. The advanced pin-connection system utilizes tin-plated, solid brass terminals to prevent corrosion and ensure a stable electrical flow. Designed for versatility, this lamp meets all federal specifications for both vertical and horizontal mounting, allowing it to adapt to various vehicle configurations while maintaining full compliance.

Key Features:

• 24-Volt Compatibility: Engineered specifically for 24V heavy-duty, marine, and international vehicle applications.
• Encapsulated Potting: Circuit board is fully encased in a specialized compound for total protection against shock and vibration.
• Advanced Pin Connection: Features tin-plated, solid-brass terminals for maximum conductivity and corrosion resistance.
• Hermetic Seal: Polycarbonate/Acrylic construction with a male pin termination for a moisture-proof, airtight seal.
• Dual-Mount Orientation: Meets SAE/FMVSS specifications for both vertical and horizontal mounting options.
• SuperNova® Reliability: High-efficiency LEDs provide superior brightness with a significantly longer service life than incandescent lamps.

Specifications:

• Part Number: 52072
• Light/Lens Color: Red
• Size: 6" Oval
• Voltage: 24V
• Amperage: 0.18A (Stop/Turn) / 0.13A (Tail)
• Material: Acrylic Lens / ABS Housing
• Mounting Type: Grommet Mount (Fits standard 6" oval holes)
• Connection Type: Male Pin (3-Wire)
• Regulations: FMVSS 108 (Functions: I, P2, S, T)
• VMRS Code: 034-002-059
• Warranty: 10-Year Grote Warranty

Need to complete your installation? You can find compatible 6" oval grommets (92420) and Grote 3-wire pigtails (66815) right here on TruckLightParts.com!
