SKU
52093
Manufactures SKU
GROTE 52093
TURN LAMP - 4IN - YELLOW - 24 VOLT - 10 DIODE
$27.58
EA

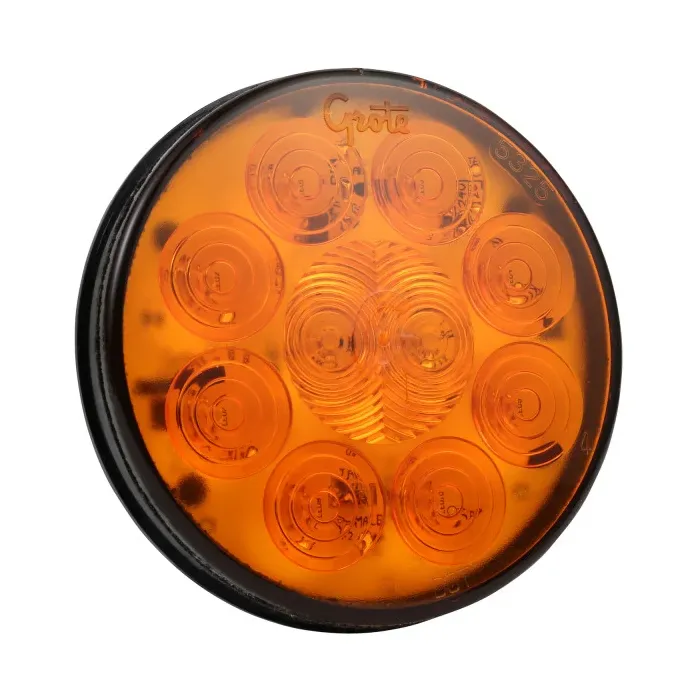

Grote 52093 Amber SuperNova® 4" 10-Diode LED Auxiliary Turn Light – 24V
The Grote 52093 is a high-performance signaling solution designed specifically for trucks, trailers, and specialized equipment operating on 24V electrical systems. As part of the elite SuperNova® line, this 4-inch round light features a concentric 10-diode pattern that delivers a crisp, amber signal, ensuring maximum visibility for auxiliary turn functions.
Built to endure the harshest road conditions, the 52093 features encapsulant potting technology, which completely seals the internal circuit board in a specialized compound to protect against intense vibration, mechanical shock, and moisture intrusion. Its hermetic lens-to-housing seal is sonically welded to prevent internal corrosion and ensure a lifetime of leak-proof performance. With an advanced pin-connection system utilizing tin-plated, solid brass terminals, this light offers superior conductivity and resistance to the elements.
Key Features:
The Grote 52093 is a high-performance signaling solution designed specifically for trucks, trailers, and specialized equipment operating on 24V electrical systems. As part of the elite SuperNova® line, this 4-inch round light features a concentric 10-diode pattern that delivers a crisp, amber signal, ensuring maximum visibility for auxiliary turn functions.
Built to endure the harshest road conditions, the 52093 features encapsulant potting technology, which completely seals the internal circuit board in a specialized compound to protect against intense vibration, mechanical shock, and moisture intrusion. Its hermetic lens-to-housing seal is sonically welded to prevent internal corrosion and ensure a lifetime of leak-proof performance. With an advanced pin-connection system utilizing tin-plated, solid brass terminals, this light offers superior conductivity and resistance to the elements.
Key Features:
- 24-Volt Engineering: Optimized for 24V heavy-duty, marine, and international vehicle applications.
- 10-Diode Concentric Pattern: Concentrated LED layout provides high-intensity amber signaling with a wide light dispersion.
- Encapsulated Potting: Total circuit board protection against the primary causes of lighting failure—vibration and moisture.
- Hermetically Sealed: Sonically welded polycarbonate/ABS housing and acrylic lens create a permanent, waterproof barrier.
- Advanced Pin Connection: Features tin-plated, solid-brass pin terminals for maximum corrosion resistance and reliable electrical flow.
- UBS Compatibility: Designed to use the same UBS pigtail as standard male pin incandescent lamps for an easy LED upgrade.
- Part Number: 52093
- Light/Lens Color: Amber
- Size: 4" Round
- Voltage: 24V DC
- Amperage: 0.12A
- Material: Acrylic Lens / PC-ABS Housing
- Mounting Type: Grommet or Bracket Mount
- Connection Type: Male Pin (3-Pin)
- Regulations: FMVSS 108 (Functions: P2)
- VMRS Code: 034-002-059
- Warranty: 10-Year Grote Warranty
Lens Color
Yellow
Shipping Weight (lbs)
0.400000
Total Height
1.6
Total Width
4.32
