STOP/TURN/TAIL LAMP - ECONOMY - OVAL LAMP - SIDE TURN

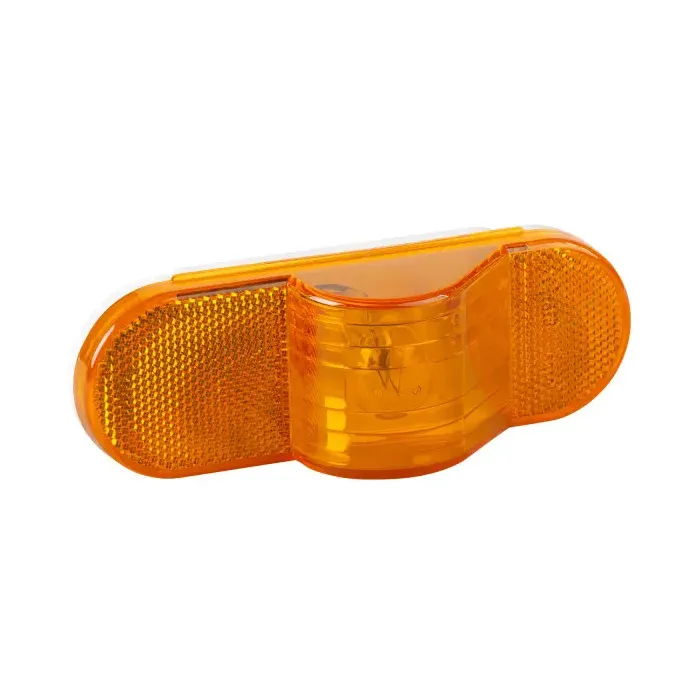

Ensure your fleet stays safe and compliant with the Grote 52193 Economy Oval Side Turn Marker Light, now available at TruckLightParts.com.

Designed as a cost-effective yet highly reliable signaling solution, this 12V incandescent lamp serves as both a side turn signal and a marker light. Built with a hermetically sealed polycarbonate lens and housing, the 52193 is engineered to withstand the rigors of the road while providing the dependable visibility required for heavy-duty trucks and trailers.

Product Features & Benefits

• Hermetic Lens-to-Housing Seal: A permanent seal protects internal components from moisture, dust, and environmental contaminants, ensuring a longer service life.
• Vibration-Resistant Mounting: Features a specialized bulb-mounting system designed to absorb road shock and vibration, preventing premature bulb failure.
• Standard Female Pin Connection: Utilizes a standard 3-pin (PL-3) female connection for easy "plug-and-play" installation and compatibility with existing wiring harnesses.
• Durable Polycarbonate Construction: Both the amber lens and the housing are made from high-impact polycarbonate, providing excellent resistance to cracking and UV damage.
• Dual-Function Versatility: Operates as both a mid-ship side turn signal and a marker lamp (E and P2 rated), maximizing your vehicle's safety profile.

Technical Specifications

• Part Number: Grote 52193
• Series: Economy Oval
• Lighting Technology: Incandescent
• Lens Color: Amber / Yellow
• Voltage: 12V DC
• Amperage: 0.48A (Marker) / 2.1A (Turn)
• Size: 6.5" Oval (Approx. 6-1/2" x 2-1/4")
• Mounting Type: Grommet Mount (Accepts standard 92420 or 92720 grommets)
• Connection: Female Pin (Accepts 67000, 67090, or 66811 pigtails)
• Material: Polycarbonate Lens & Housing
• Regulations: FMVSS 108; SAE A, E, P2
• VMRS Code: 034-003-097
• Warranty: 1 Year
