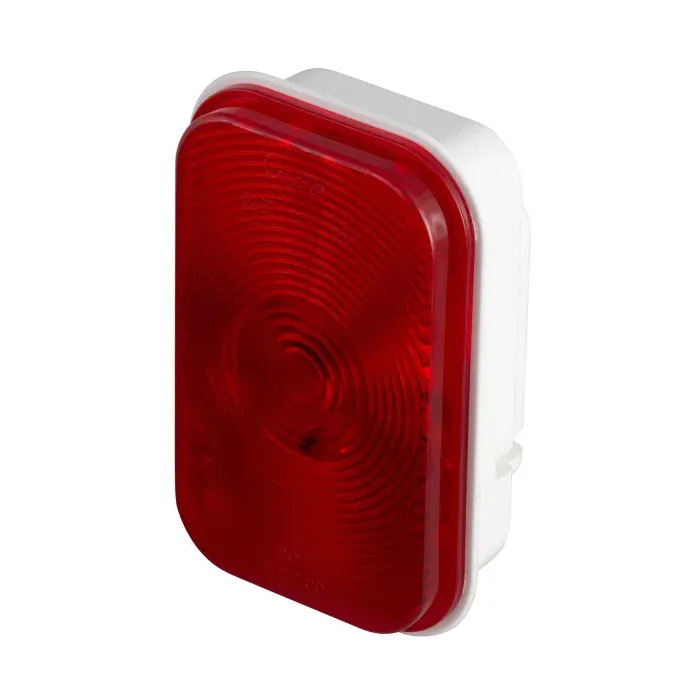

STOP/TURN/TAIL LAMP - RED - SEALED RECTANGULAR

Enhance your vehicle's safety and reliability with the Grote 52202 Rectangular Stop Tail Turn Light, available now at TruckLightParts.com.

The Grote 52202 is an industry-standard incandescent lighting solution designed to provide clear, reliable signaling for heavy-duty trucks, trailers, and RVs. Featuring a rugged polycarbonate construction and a hermetically sealed design, this red rectangular lamp is built to withstand harsh weather, road debris, and heavy vibration. Whether you're performing a routine replacement or a full fleet upgrade, this versatile 12V light ensures your stop, tail, and turn functions are always visible.

Product Features & Benefits

• Rubber Shock-Mounted Socket: Features a specialized internal mounting system that absorbs road shock and vibration to significantly extend bulb life.
• Hermetic Environmental Seal: The lens-to-housing seal is permanent and airtight, preventing moisture, dust, and corrosion from entering the lamp.
• Durable Polycarbonate Construction: Built with a high-impact polycarbonate lens and housing for maximum durability in punishing environments.
• Standard Plug-and-Play Connection: Uses an industry-standard 3-pin female pin connection for quick, hassle-free installation with common pigtails.
• FMVSS 108 Compliant: Meets all legal safety requirements for Stop, Tail, and Turn (I, P2, S, T) functions.

Technical Specifications

• Part Number: Grote 52202
• Shape: Rectangular
• Lighting Technology: Incandescent
• Color: Red (White Housing)
• Voltage: 12V DC
• Amperage: 0.48A (Tail) / 2.1A (Stop/Turn)
• Mounting Type: Grommet Mount (Accepts Grote 92180 grommet)
• Connection Type: Female Pin (Compatible with Grote 67000, 66811, 66843, 66844 pigtails)
• Dimensions: 3-13/32" W x 5-5/16" H x 1-15/16" D
• Bulb: 2057 (32/2 Candlepower)
• Warranty: 1 Year
