- Full-Pattern LED Output: Designed with a comprehensive diode layout that illuminates the entire 4-inch lens for superior visibility and safety.
- Advanced Environmental Protection: The circuit board is fully potted (encapsulated in resin) to shield internal components from vibration, thermal shock, and moisture.
- Hermetic Lens-to-Housing Seal: A permanent, airtight seal prevents internal fogging and protects against dust and water ingress.
- Maintenance-Free Longevity: Rated for 100,000 hours of service life, virtually eliminating the downtime and costs associated with bulb replacements.
- High-Efficiency Power Draw: Consumes significantly less amperage than traditional incandescent lamps, reducing the load on your vehicle's electrical system.
- Rugged Polycarbonate Build: Both the lens and housing are constructed from high-impact polycarbonate to resist cracking and UV damage.
SKU
53192
Manufactures SKU
GROTE 53192

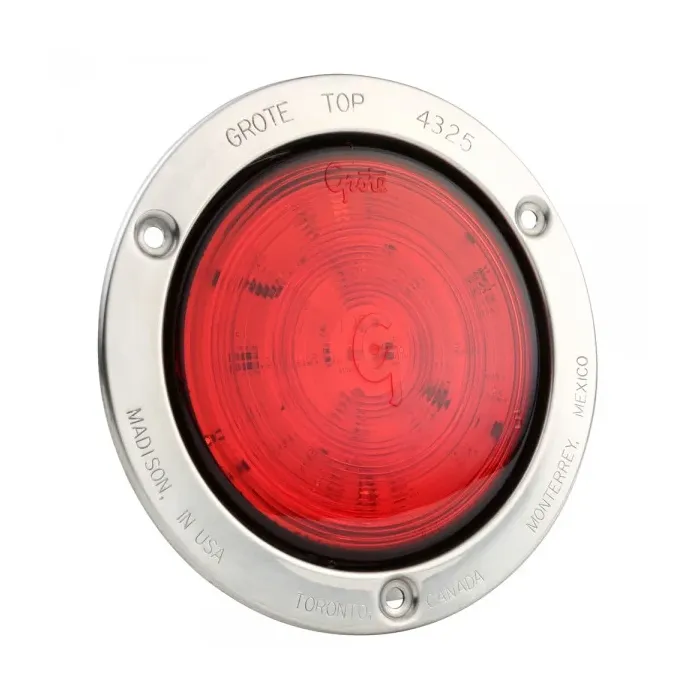

Grote 53192 SuperNova® 4" Full-Pattern LED Stop Tail Turn Light
$57.47
EA
The Grote 53192 represents the gold standard in LED signaling. Unlike partial-pattern lights, this "Full-Pattern" lamp utilizes the entire lens surface for a brilliant, uniform output that ensures maximum visibility for trailing drivers. Engineered for longevity, the SuperNova® series features a fully encapsulated, potted circuit board that protects the electronics from moisture, corrosion, and the punishing vibrations of heavy-duty hauling.
Key Details
Common Size
4
Current Major Amp
0.24A
Current Minor Amp
0.05A
Functionality
Red Full-Pattern LED Stop Turn Tail Lamp
Housing Material
Polycarbonate
Lens Color
Red
Lens Material
Polycarbonate
Lens Shape
Round
Mount Type
Flange Mount
Voltage
12V DC
Compliance Family
FMVSS 108 (I, P2, S, T); SAE I, P2, S, T
VMRS
034-002-059
Warranty
10-Year
Shipping Weight (lbs)
0.520000
Total Height
0.89
Total Width
5.56
