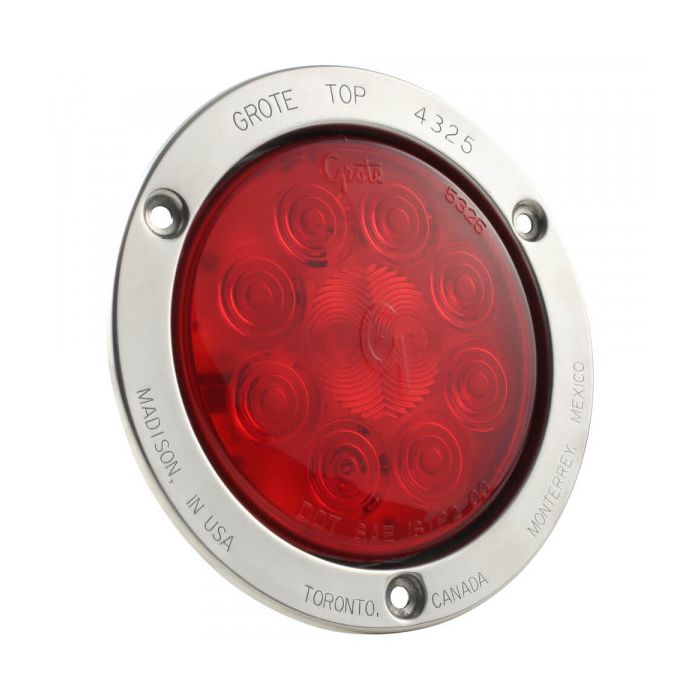

STOP/TURN/TAIL LAMP - 4IN - RED - W/ STLS STEEL THEFT RESISTANT FLANGE - SUPERNOVA® LED

Enhance your vehicle's safety and security with the Grote 53302 SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Light, available now at TruckLightParts.com.

The Grote 53302 is a premium, high-performance LED solution that combines advanced signaling technology with rugged anti-theft protection. Featuring a distinctive 10-diode pattern, this 4-inch round lamp provides a crisp, full-pattern light output that exceeds safety standards while consuming minimal power. For added peace of mind, it comes equipped with a stainless steel theft-resistant flange, making it the ideal choice for fleets and owner-operators who demand both durability and security in harsh environments.

Product Features & Benefits

• 10-Diode Full-Pattern Array: Delivers high-intensity, uniform light output for Stop, Tail, and Turn functions to maximize visibility for trailing drivers.
• Theft-Resistant Stainless Steel Flange: Features a permanent mounting flange that secures the light to the vehicle, deterring theft and providing superior corrosion resistance.
• Encapsulant Potting Technology: The circuit board is fully encapsulated in resin, providing total protection against thermal shock, moisture ingress, and road vibration.
• Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and guards the lamp against dust and water.
• Advanced Pin Connection System: Uses tin-plated, solid-brass male pin terminals for superior conductivity and resistance to corrosive buildup.
• Easy Maintenance Retrofit: Designed to use the same Ultra-Blue-Seal® (UBS) pigtails as standard male-pin incandescent lamps for a hassle-free LED upgrade.
• Long-Life Reliability: Rated for an exceptional service life with a 10-year manufacturer warranty, significantly reducing maintenance downtime.

Technical Specifications

• Part Number: 53302
• Series: SuperNova®
• Lighting Technology: LED (10-Diode)
• Size: 4" Round (4-5/16" Diameter with Flange)
• Lens Color: Red
• Housing Color: Gray (Polycarbonate/ABS)
• Voltage: 12V DC
• Amperage: 0.03A (Tail) / 0.24A (Stop/Turn)
• Mounting Type: Grommet / Flange Mount (Permanent)
• Connection Type: Male Pin (PL-3 Style)
• Compliance: FMVSS 108 (I, P2, S, T)
• VMRS Code: 034-002-059
• Warranty: 10 Years
