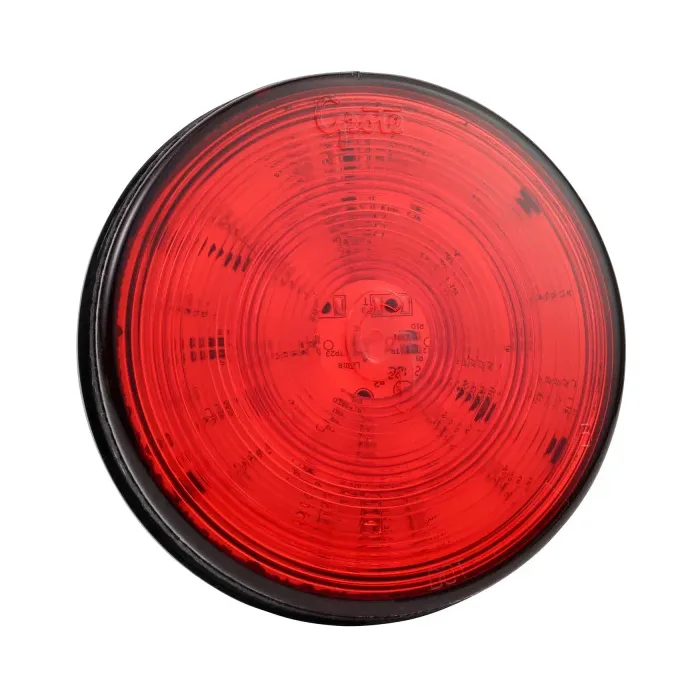

STOP/TURN/TAIL LAMP - 4IN - RED - SUPERNOVA® LED FULL PATTERN

Enhance your vehicle's safety and modernize your lighting system with the Grote 53312 SuperNova® 4" Full-Pattern LED Stop Tail Turn Light, available now at TruckLightParts.com.

The Grote 53312 is engineered for professional fleets that demand the highest levels of reliability and visibility. Featuring a Full-Pattern LED design, this 4-inch round lamp utilizes its entire lens surface to deliver a brilliant, uniform light output, ensuring your signals are seen clearly from greater distances. Built with Grote’s premium SuperNova® technology, this light features a fully encapsulated, potted circuit board and a hermetic seal to defend against moisture, corrosion, and heavy road vibration. This specific model utilizes a male pin connection, allowing for a secure, moisture-resistant fit with standard PL-3 pigtails.

Product Features & Benefits

• Full-Pattern LED Output: Designed to illuminate the entire lens for a bold, uniform signal that maximizes safety and visibility for trailing drivers.
• Encapsulant Potting Technology: The circuit board is fully potted in resin, providing total protection against thermal shock, moisture ingress, and punishing mechanical vibration.
• Advanced Pin Connection System: Features tin-plated, solid-brass male pin terminals for superior conductivity and maximum resistance to corrosive buildup.
• Hermetic Lens-to-Housing Seal: A permanent, airtight seal prevents internal fogging and protects the internal electronics from dust and water spray.
• Rugged Construction: Built with a high-impact polycarbonate/ABS housing and an acrylic lens to withstand the daily rigors of heavy-duty hauling.
• Maintenance-Free Reliability: Rated for an exceptional service life, significantly reducing vehicle downtime and the costs associated with bulb replacements.

Technical Specifications

• Part Number: 53312
• Series: SuperNova® Full-Pattern
• Lighting Technology: LED
• Size: 4" Round
• Lens Color: Red
• Housing Color: Gray
• Voltage: 12V DC
• Amperage: 0.03A (Tail) / 0.56A (Stop/Turn)
• Mounting Type: Grommet Mount
• Connection Type: Male Pin (Standard PL-3 Style)
• Compliance: FMVSS 108 (I, P2, S, T); SAE I, P2, S, T
• VMRS Code: 034-002-059
• Warranty: 10 Years
