STOP/TURN/TAIL LAMP - 4IN - RED - (53252+91740+67002) - SUPERNOVA® LED

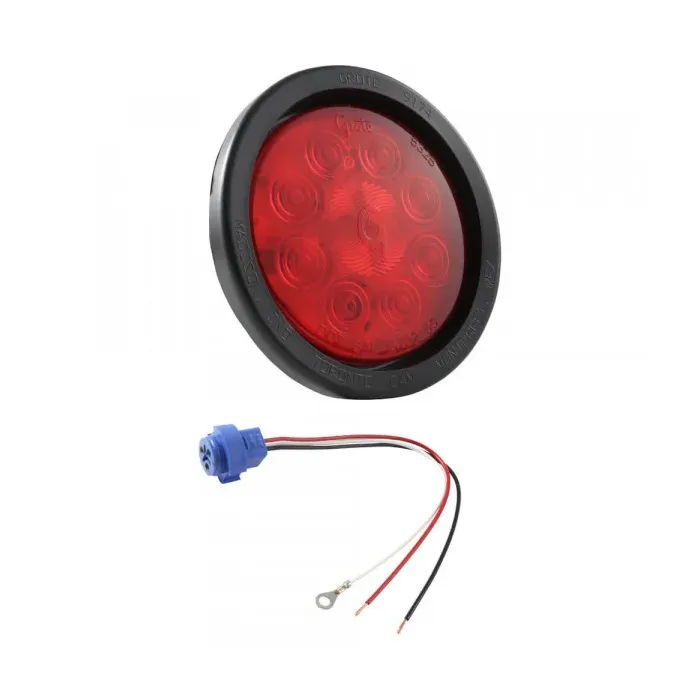

Maximize your vehicle's safety and modernize your rear signaling with the Grote 53462 SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Light, available now at TruckLightParts.com.

The Grote 53462 is a premium, high-visibility LED solution designed for fleets that demand long-term reliability and superior performance. Featuring a distinctive 10-diode pattern, this 4-inch round lamp provides a crisp, clear signal for stop, tail, and turn functions. Built with Grote’s advanced SuperNova® technology, the internal electronics are fully encapsulated in a potting compound to guard against moisture, corrosion, and heavy road vibration. This model is equipped with a hardwired termination and a mold-on pigtail, ensuring a permanent, moisture-proof electrical connection that eliminates the risk of terminal corrosion.

Product Features & Benefits

• 10-Diode High-Visibility Pattern: Delivers high-intensity light output for critical signaling functions while drawing significantly less power than incandescent lamps.
• Hardwired Mold-On Pigtail: Features a factory-sealed pigtail that provides a permanent, watertight connection, preventing moisture from entering through the wire harness.
• Encapsulant Potting Technology: The internal circuit board is completely encapsulated in resin to shield sensitive components from thermal shock, moisture, and road vibration.
• Hermetic Lens-to-Housing Seal: A permanent, airtight seal prevents internal condensation and protects the lamp from dust, road chemicals, and water spray.
• Superior Durability: Constructed with a high-impact polycarbonate lens and housing designed to resist cracking and UV damage in harsh environments.
• Maintenance-Free Longevity: Rated for an exceptional service life, significantly reducing vehicle downtime and the costs associated with frequent bulb replacements.

Technical Specifications

• Part Number: 53462
• Series: SuperNova® 10-Diode
• Lighting Technology: LED
• Size: 4" Round
• Lens Color: Red
• Housing Color: Gray
• Voltage: 12V DC
• Amperage: 0.05A (Tail) / 0.24A (Stop/Turn)
• Mounting Type: Grommet Mount
• Connection Type: Hardwired (Mold-on Pigtail)
• Compliance: FMVSS 108 (I, P2, S, T); SAE I, P2, S, T
• VMRS Code: 034-002-059
• Warranty: Limited Lifetime
