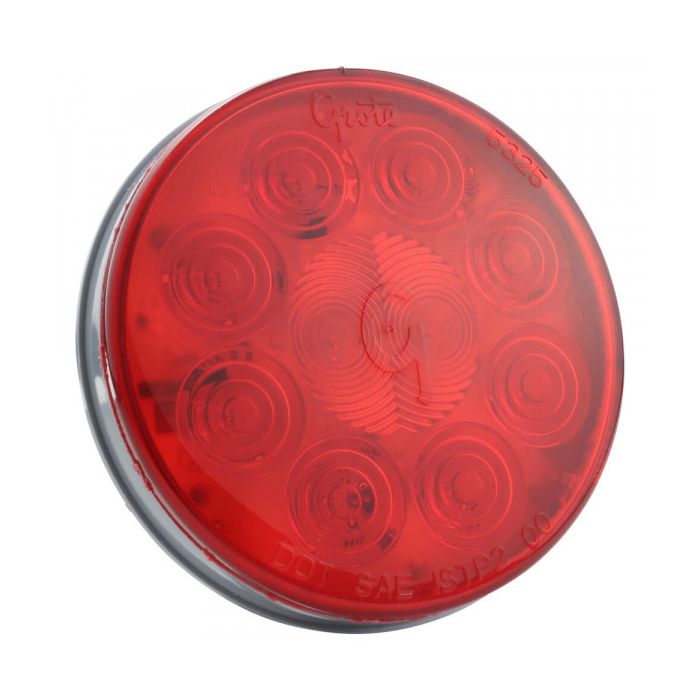

STOP/TURN/TAIL LAMP - 4IN RED - SUPERNOVA® LED - 10 DIODE - GROMMET MOUNT - W/AMP CONNECTION

Enhance your vehicle's safety and modernize your rear signaling with the Grote 53552 SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Light, available now at TruckLightParts.com.

The Grote 53552 is a premium, high-visibility LED solution designed for fleets that demand long-term reliability and superior performance. Featuring a distinctive 10-diode pattern, this 4-inch round lamp provides a crisp, clear signal for stop, tail, and turn functions. Built with Grote’s advanced SuperNova® technology, the internal electronics are fully encapsulated in a potting compound to guard against moisture, corrosion, and heavy road vibration. This specific model features a hard-shell connector (AMP style), providing a robust, click-in electrical connection that is ideal for heavy-duty and high-vibration applications.

Product Features & Benefits

• 10-Diode High-Visibility Pattern: Delivers high-intensity light output for critical signaling functions while drawing significantly less power than traditional incandescent lamps.
• Hard-Shell Connector (AMP Style): Features a secure, positive-locking hard-shell termination that ensures a stable electrical connection even in the most punishing environments.
• Encapsulant Potting Technology: The internal circuit board is completely encapsulated in resin to shield sensitive components from thermal shock, moisture, and mechanical vibration.
• Hermetic Lens-to-Housing Seal: A permanent, airtight seal prevents internal condensation and protects the lamp from dust, road chemicals, and water spray.
• Advanced Pin System: Uses tin-plated, solid-brass pin terminals within the connector for maximum conductivity and resistance to corrosive buildup.
• Superior Dispersion Optics: The specialized lens design spreads light for maximum dispersion, ensuring your vehicle is visible from wide angles.
• Rugged Construction: Built with a high-impact polycarbonate/ABS housing and an acrylic lens to resist cracking and UV damage.

Technical Specifications

• Part Number: 53552
• Series: SuperNova® 10-Diode
• Lighting Technology: LED
• Size: 4" Round (4-5/16" Diameter)
• Lens Color: Red
• Housing Color: Gray
• Voltage: 12V DC
• Amperage: 0.03A (Tail) / 0.24A (Stop/Turn)
• Mounting Type: Grommet Mount
• Connection Type: Hard-Shell (AMP Style)
• Compliance: FMVSS 108 (I, P2, S, T)
• VMRS Code: 034-002-059
• Warranty: 10 Years
