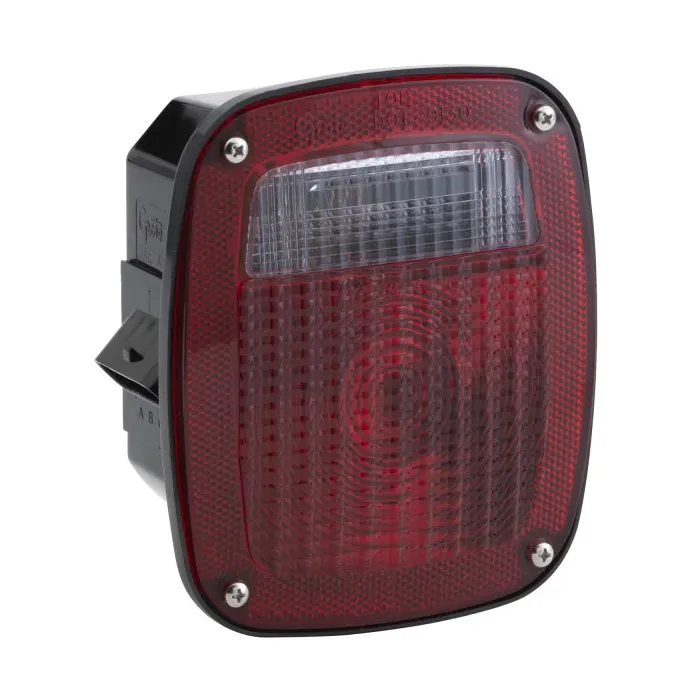

STOP/TURN/TAIL LAMP - RED - SUPERNOVA® LED - W/LICENSE WINDOW - PASSENGER SIDE - OE CONNECTION

Maximize the safety and durability of your heavy-duty fleet with the Grote 53630 SuperNova® Three-Stud Metri-Pack® LED Stop Tail Turn Light, available now at TruckLightParts.com.

The Grote 53630 is a premium, multi-function lighting solution specifically designed for the demanding environments of heavy-duty trucks and trailers. This unit features a robust three-stud mounting system and an integrated Metri-Pack® connector, ensuring a rock-solid mechanical and electrical fit. Built with Grote’s legendary SuperNova® LED technology, the internal electronics are fully encapsulated in a potting compound to withstand the "triple threat" of moisture, corrosion, and extreme road vibration.

Product Features & Benefits

• Integrated Metri-Pack® Connection: Features a built-in Metri-Pack® 280-series connector for a secure, moisture-tight, and vibration-proof electrical interface.
• Three-Stud Mounting: Designed for heavy-duty applications, the 3-stud configuration provides a permanent and stable mount that resists loosening over time.
• Encapsulant Potting Technology: The internal circuit board is completely encapsulated in resin to shield sensitive components from thermal shock, moisture ingress, and mechanical vibration.
• Dual-Function Visibility: Fully rated for Stop, Tail, and Turn functions (FMVSS rated I, P2, S, and T) to keep your vehicle compliant and visible.
• Hermetic Lens-to-Housing Seal: A permanent, airtight seal prevents internal fogging and protects the light from water spray, dust, and road chemicals.
• Rugged Construction: Built with high-impact, UV-resistant polycarbonate materials designed to withstand the rigors of long-haul trucking.
• Maintenance-Free Longevity: Rated for an exceptional service life, significantly reducing vehicle downtime and the labor costs associated with bulb replacements.

Technical Specifications

• Part Number: 53630
• Series: SuperNova®
• Lighting Technology: LED
• Mounting Type: 3-Stud
• Lens Color: Red
• Housing Color: Gray
• Material: Polycarbonate Lens & Housing
• Voltage: 12V DC
• Amperage: 0.04A (Tail) / 0.34A (Stop/Turn)
• Connection Type: Integrated Metri-Pack® 280
• Compliance: FMVSS 108 (I, P2, S, T); SAE I, P2, S, T
• VMRS Code: 034-002-059
• Warranty: 10 Years
