- Integrated Metri-Pack® Connection: Built with a 280-series Metri-Pack® connector for a professional, click-in electrical fit that prevents terminal corrosion.
- Three-Stud Mounting Design: Provides a stable, permanent mounting solution specifically for heavy-duty truck and trailer applications.
- Encapsulant Potting Technology: The internal circuit board is completely encapsulated in resin to protect sensitive components from thermal shock, moisture ingress, and mechanical vibration.
- Dual-Function Visibility: Performs Stop, Tail, and Turn functions (FMVSS rated I, P2, S, and T) to keep your vehicle safe and compliant.
- Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and guards the light from water spray and road chemicals.
- Rugged Construction: Built with a high-impact polycarbonate lens and housing designed to resist cracking and UV damage in harsh environments.
- Maintenance-Free Longevity: Rated for an exceptional service life with a 10-year warranty, significantly reducing vehicle downtime.
SKU
53640
Manufactures SKU
GROTE 53640

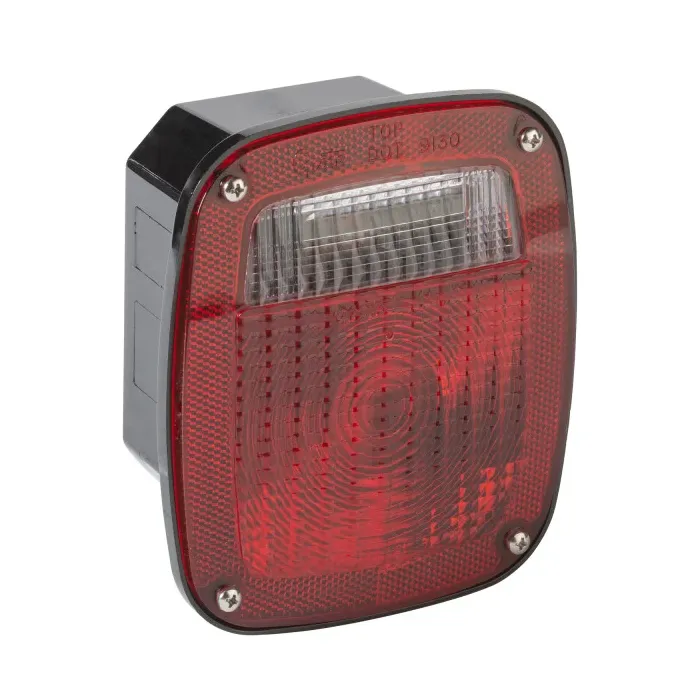

Grote 53640 SuperNova® Three-Stud Metri-Pack® LED Stop Tail Turn Light
$92.88
EA
The Grote 53640 is a high-performance, multi-function LED signaling solution specifically engineered for the rigorous demands of commercial trucking. This unit features a secure three-stud mounting system and an integrated Metri-Pack® connector, ensuring a moisture-tight and vibration-proof interface. Built with Grote’s premium SuperNova® technology, the internal electronics are fully encapsulated in a potting compound to withstand the "triple threat" of moisture, corrosion, and extreme road vibration.
Key Details
Current Major Amp
0.34A
Current Minor Amp
0.04A
Functionality
LED Stop/Turn/Tail with Integrated Back-Up Lamp
Housing Color
Gray
Housing Material
Polycarbonate
Lens Color
RED/CLEAR
Lens Material
Polycarbonate
Lens Shape
Rectangular
Mount Type
3 Stud Mount
Voltage
12V DC
Compliance Family
FMVSS 108 (I, P2, S, T); SAE I, P2, S, T
VMRS
034-002-059
Warranty
10-Year
Shipping Weight (lbs)
1.310000
Total Height
7.13
Total Width
5.13
