- Comprehensive 6-in-1 Functionality: Performs Stop, Tail, Turn, Backup (R2), Rear Reflex (A), and License illumination (L) functions in a single, compact housing.
- Integrated License Window: Features a clear bottom window to illuminate the vehicle’s license plate, eliminating the need for separate plate lights.
- Metri-Pack® Connector: Includes a built-in Metri-Pack® interface for a secure, moisture-resistant electrical connection that prevents terminal corrosion.
- Three-Stud Mounting: The robust 3-stud configuration provides a permanent, vibration-resistant mount that resists loosening during long hauls.
- Reflex Reflector Included: Features an integrated reflex reflector to improve vehicle recognition and safety during low-light conditions.
- Durable Construction: Built with a high-impact polycarbonate housing and a rugged acrylic lens designed to resist road debris and UV damage.
- Direct OE Replacement: Effectively replaces GM® #15613943/15565731 and Navistar® #1661281C91.
SKU
53702
Manufactures SKU
GROTE 53702

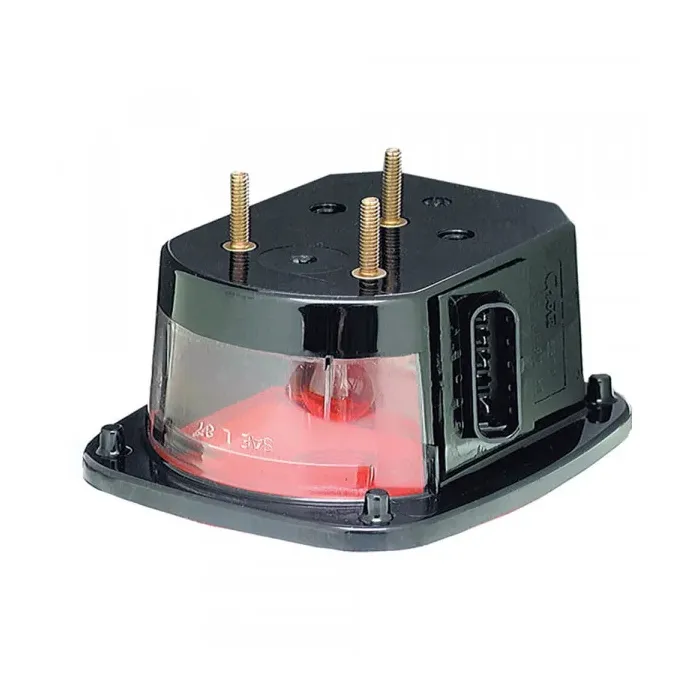

Grote 53702 Three-Stud Metri-Pack® Stop Tail Turn Light (Right Hand)
$40.05
EA
The Grote 53702 is a rugged, multi-function box light designed specifically for the punishing environments of heavy-duty trucking and towing. This right-hand (passenger side) unit combines Stop, Tail, and Turn signaling with an integrated backup light and a license window for maximum utility. Featuring a secure three-stud mounting system and a factory-integrated Metri-Pack® connector, this light ensures a rock-solid mechanical and electrical fit, making it a preferred replacement for GM and Navistar OE applications.
Key Details
Current Major Amp
2.1A
Current Minor Amp
0.59A
Housing Color
Black
Housing Material
Polycarbonate
Lens Color
Red
Lens Material
Acrylic
Lens Shape
Rectangular
Lighting Technology
Incandescent
Mount Type
3 Stud Mount
Voltage
12V DC
Compliance Family
FMVSS 108 (A, I, L, R2, S, T)
VMRS
034-002-022
Shipping Weight (lbs)
1.000000
Total Height
7.13
Total Width
5.13
