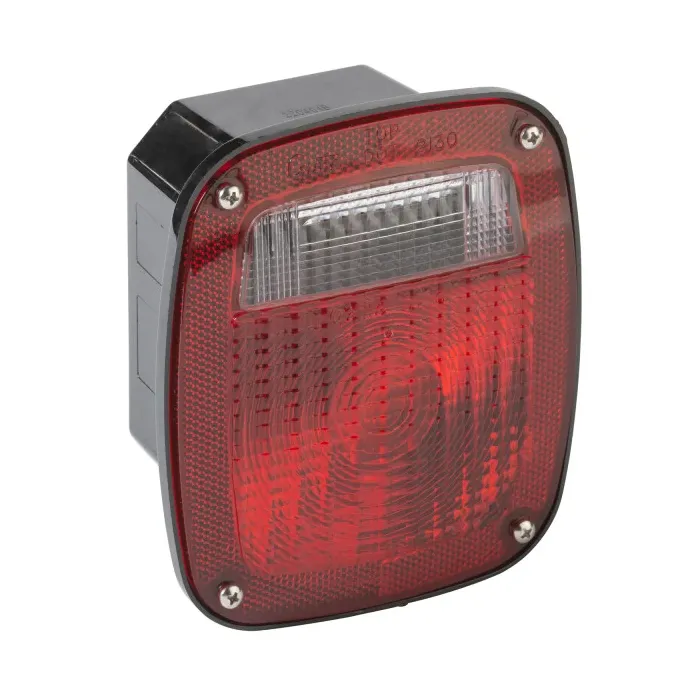

STOP/TURN/TAIL LAMP - RED - 3-STUD METRI-PACK DRIVER SIDE REPLACEMENT

Ensure your heavy-duty vehicle remains compliant and visible with the Grote 53712 Three-Stud Metri-Pack® Stop Tail Turn Light (Left Hand), available now at TruckLightParts.com.

The Grote 53712 is a professional-grade, multi-function box light designed for the rigorous demands of commercial trucking. This left-hand (driver side) unit provides comprehensive rear signaling, combining Stop, Tail, and Turn functions with an integrated backup light and a dedicated license window. Engineered as a direct OE replacement for GM and Navistar applications, this lamp features a secure three-stud mounting system and a factory-integrated Metri-Pack® connector for a moisture-resistant, vibration-proof electrical interface.

Product Features & Benefits

• 6-in-1 Multi-Function Design: Integrated Stop, Tail, Turn, Backup (R2), Rear Reflex (A), and License illumination (L) in one durable housing.
• Built-In License Window: Features a high-clarity bottom window to illuminate the license plate, ensuring full legal compliance without extra fixtures.
• Metri-Pack® Connector: Equipped with a standard Metri-Pack® interface on the side for a secure, click-in connection that protects against terminal corrosion.
• Rugged 3-Stud Mounting: The three-stud configuration provides a stable, permanent mount that withstands the high-vibration environments of heavy-duty hauling.
• Integrated Reflex Reflector: Built-in reflector enhances vehicle visibility to other drivers, even when the lights are off.
• High-Impact Construction: Manufactured with a heavy-duty polycarbonate housing and a scratch-resistant acrylic lens for maximum durability against road debris.
• Reliable OE Replacement: Directly replaces GM® #15613944 / 15565732 and Navistar® #1661281C91.

Technical Specifications

• Part Number: 53712
• Orientation: Left Hand (Driver Side)
• Lighting Technology: Incandescent
• Shape: Rectangular (approx. 5.75" x 6.75")
• Lens Color: Red / Clear
• Housing Color: Black
• Voltage: 12V DC
• Amperage: 0.59A (Tail/License) / 2.1A (Stop/Turn/Backup)
• Mounting Type: 3-Stud Bracket Mount
• Connection Type: Metri-Pack®
• Standards: FMVSS 108 (A, I, L, R2, S, T)
• Bulb Type: 1157 (Stop/Tail/Turn) and Backup bulb
• VMRS Code: 034-002-022
