- Amber LED High-Visibility: Delivers intense amber light output for turn and clearance functions while drawing significantly less power than incandescent lamps.
- Encapsulant Potting Technology: The circuit board is completely sealed in resin, providing total protection against thermal shock, moisture ingress, and road vibration.
- Advanced Pin Connection System: Utilizes tin-plated, solid-brass male pin terminals for maximum conductivity and superior resistance to corrosive buildup.
- Vertical or Horizontal Mounting: Specifically engineered to meet legal signaling specifications for both mounting orientations, offering maximum installation flexibility.
- Hermetic Lens-to-Housing Seal: A permanent, airtight seal prevents internal fogging and guards the internal components from water, dust, and road chemicals.
- Rugged Construction: Built with a high-impact ABS housing and a UV-coated acrylic lens to resist cracking, fading, and chemical damage.
- Long-Term Reliability: Backed by Grote’s 10-year warranty, ensuring years of maintenance-free service and reduced vehicle downtime.
SKU
53963
Manufactures SKU
GROTE 53963

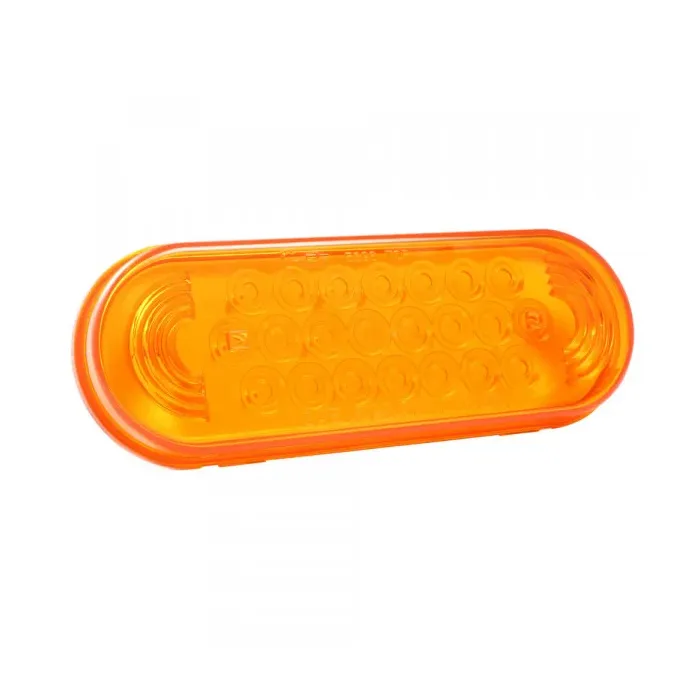

Grote 53963 SuperNova® 6" Oval LED Stop Tail Turn Light
$37.73
EA
The Grote 53963 is a professional-grade amber LED signaling solution engineered for maximum durability and performance. Designed for heavy-duty applications, this 6-inch oval lamp features Grote’s premium SuperNova® technology, providing a bright, clean amber signal that far outlasts traditional incandescent bulbs. To combat the harshest road conditions, the internal electronics are fully encapsulated in a potting compound, protecting the circuit board against moisture, corrosion, and heavy mechanical vibration.
Key Details
Current Amp
0.27
Housing Color
White
Housing Material
ABS
Lens Color
AMBER
Lens Material
Acrylic
Lens Shape
Oval
Lighting Technology
LED
Mount Type
Grommet Mount
Voltage
12V DC
Compliance Family
FMVSS 108 (I, P2, S)
VMRS
034-002-059
Warranty
10-Year
Shipping Weight (lbs)
0.550000
Total Height
1.84
Total Width
2.29
