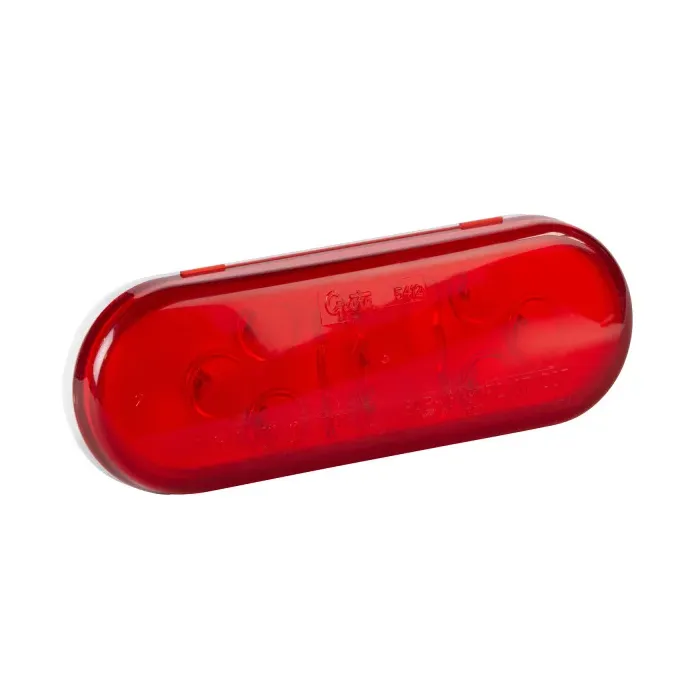

STOP/TURN/TAIL LAMP - RED - OVAL - LED - W/HARD SHELL CONNECTOR - 9 DIODE

Maximize your vehicle's visibility and fleet security with the Grote 54142 SuperNova® 6" Oval LED Stop Tail Turn Light, available now at TruckLightParts.com.

The Grote 54142 is a premium 9-diode LED signaling solution designed for heavy-duty performance and theft prevention. This red 6-inch oval lamp features an integrated black theft-resistant flange, providing a permanent mounting solution that secures your lighting investment against tampering. Built with Grote’s advanced SuperNova® technology, the internal electronics are fully encapsulated in a potting compound to withstand the "triple threat" of moisture, corrosion, and extreme road vibration.

Product Features & Benefits

• Theft-Resistant Flange Mount: Includes a rugged, permanent black flange that secures the light directly to the vehicle body, deterring theft and ensuring a stable, vibration-proof fit.
• Encapsulant Potting Technology: The internal circuit board is completely encapsulated in resin to shield sensitive components from thermal shock, moisture ingress, and mechanical failure.
• Advanced Pin Connection: Features tin-plated, solid-brass male pin terminals for maximum conductivity and industry-leading resistance to corrosive buildup.
• Vertical or Horizontal Mounting: Specifically engineered to meet legal signaling specifications for both orientations, offering total installation flexibility for any truck or trailer.
• Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and guards the lamp from road chemicals and high-pressure water spray.
• High-Impact Construction: Built with a rugged polycarbonate lens and housing designed to resist cracking, UV damage, and harsh environmental exposure.
• 10-Year Maintenance-Free Service: Rated for an exceptional service life and backed by Grote’s 10-year warranty, significantly reducing fleet downtime.

Technical Specifications

• Part Number: 54142
• Series: SuperNova®
• Lighting Technology: LED (9-Diode)
• Size: 6" Oval (Approx. 8" Length with Flange)
• Lens Color: Red
• Housing Color: Black (Flange Mount)
• Material: Polycarbonate
• Voltage: 12V DC
• Amperage: 0.03A (Tail) / 0.24A (Stop/Turn)
• Mounting Type: Permanent Flange Mount
• Connection Type: Male Pin (Standard PL-3 Style)
• Compliance: FMVSS 108 (I, P2, S, T); SAE I, P2, S, T
• VMRS Code: 034-002-059
• Warranty: 10 Years
