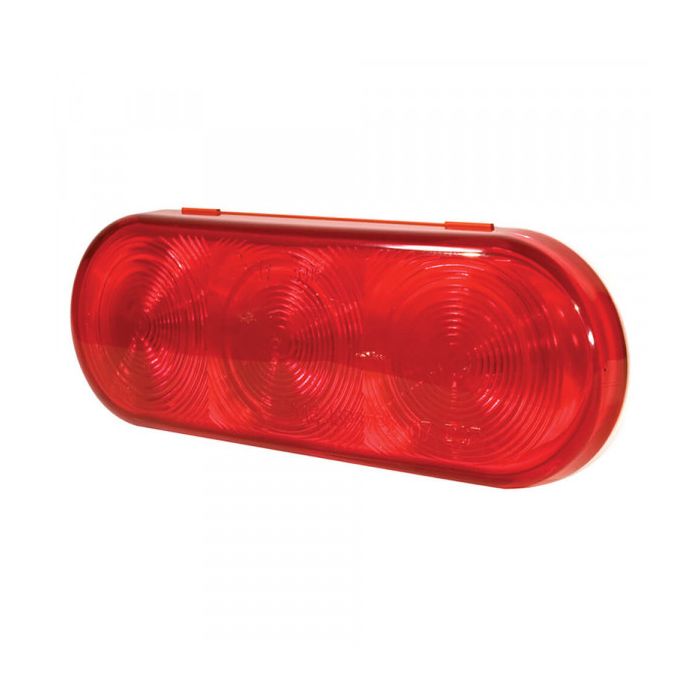

STOP/TURN/TAIL LAMP - RED - OVAL - FEMALE PIN - 3 DIODE LED

Maximize your vehicle's safety and value with the Grote 54172 Grote Select™ Oval LED Stop Tail Turn Light, available now at TruckLightParts.com.

The Grote 54172 is a high-performance, cost-effective signaling solution designed for the heavy-duty trucking industry. Part of the Grote Select™ line, this 6-inch oval red lamp offers the long-lasting benefits of LED technology at a competitive price point. Engineered for durability, the internal electronics are fully encapsulated in a potting compound to protect against moisture, corrosion, and road vibration. Its hermetic lens-to-housing seal ensures that your lighting stays clear and functional, even in the harshest weather conditions.

Product Features & Benefits

• Grote Select™ Value: High-quality LED performance designed to provide a reliable, budget-friendly alternative for fleet maintenance and repairs.
• Encapsulant Potting Technology: The internal circuit board is completely sealed in resin, shielding sensitive components from vibration-induced failure and moisture ingress.
• Hermetic Lens-to-Housing Seal: Features a sonically welded, airtight seal that prevents internal condensation and protects the lamp from road chemicals and water spray.
• Standard PL-3 Connection: Equipped with industry-standard male pin terminals for a quick, secure electrical interface that resists corrosion.
• Universal Mounting: Specifically engineered to meet legal signaling specifications for both vertical and horizontal mounting configurations.
• Durable Construction: Manufactured with a high-impact polycarbonate lens and housing designed to resist cracking and UV fading over time.
• Easy Retrofit: Designed to fit standard 6" oval grommets and brackets, making it a simple upgrade from traditional incandescent lights.

Technical Specifications

• Part Number: 54172
• Series: Grote Select™
• Lighting Technology: LED
• Size: 6" Oval
• Lens Color: Red
• Housing Color: White
• Material: Polycarbonate
• Voltage: 12V DC
• Amperage: 0.03A (Tail) / 0.17A (Stop/Turn)
• Mounting Type: Grommet Mount
• Connection Type: Male Pin (PL-3 Style)
• Compliance: FMVSS 108 (I6, P2, S, T); SAE I6, P2, S, T
• VMRS Code: 034-002-059
• Warranty: 2 Years
