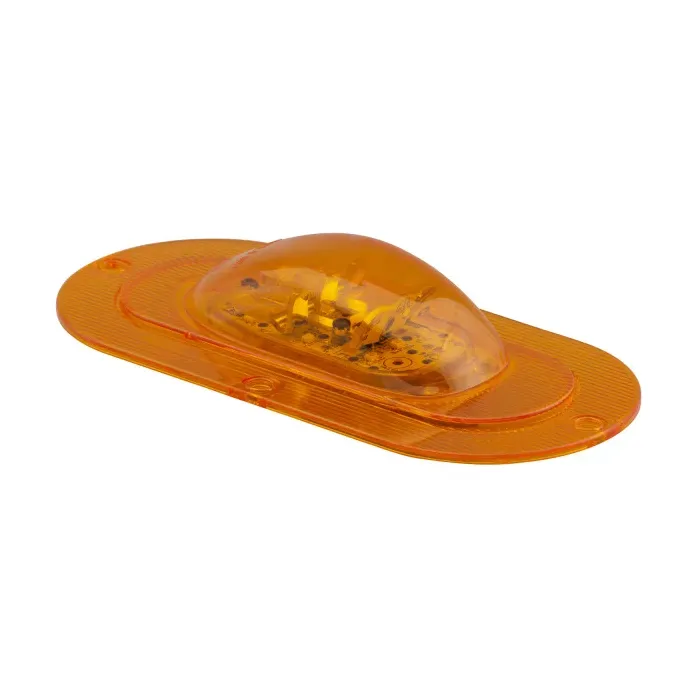

STOP/TURN/TAIL LAMP - YELLOW - LED - SIDE TURN LAMP - OVAL - MALE PIN

Enhance your vehicle's safety and signaling performance with the Grote 54203 SuperNova® Oval LED Side Turn Marker Light, available now at TruckLightParts.com.

The Grote 54203 is a premium, 50-state-legal amber signaling solution designed specifically for mid-position mounting on heavy-duty trucks and trailers. Part of the elite SuperNova® series, this 6-inch oval lamp features an integrated flange mount, providing a clean, permanent, and secure installation. Engineered with a single circuit board and reflector design, this light ensures the flashing turn signal is visible to the driver during operation, providing an extra layer of safety and peace of mind on the road.

Product Features & Benefits

• Integrated Flange Mount: Features a built-in flange for a secure, professional-grade permanent mount that resists vibration and tampering.
• Driver Visibility: Specially designed optics allow the driver to see the flashing turn signal from the cab during operation, confirming the signal is active.
• 50-State Legal Compliance: Meets all FMVSS 108 and SAE J914 (E/E2) requirements, as well as California Title 13, for mid-ship side turn and marker functions.
• Encapsulated Durability: The internal circuit board is protected by high-quality potting to shield electronics against the "triple threat" of moisture, corrosion, and road vibration.
• Hermetic Seal: A sonically welded, airtight lens-to-housing seal prevents internal condensation and protects the lamp from road chemicals and water spray.
• High-Impact Construction: Manufactured with a rugged polycarbonate lens and housing for maximum resistance to impacts, UV damage, and harsh environments.
• 10-Year Warranty: Backed by Grote’s industry-leading 10-year warranty, ensuring years of maintenance-free service and reduced fleet downtime.

Technical Specifications

• Part Number: 54203
• Series: SuperNova®
• Lighting Technology: LED
• Size: 6" Oval (approx. 7.85" Length with Flange)
• Lens Color: Amber
• Housing Color: Amber
• Material: Polycarbonate Lens & Housing
• Voltage: 12V DC
• Amperage: 0.06A (Marker) / 0.45A (Turn)
• Mounting Type: Integrated Flange Mount
• Connection Type: Male Pin (Standard PL-3 Style)
• Compliance: FMVSS 108 (E, E2, P2); SAE J914; California Title 13
• VMRS Code: 034-003-097
• Warranty: 10 Years
