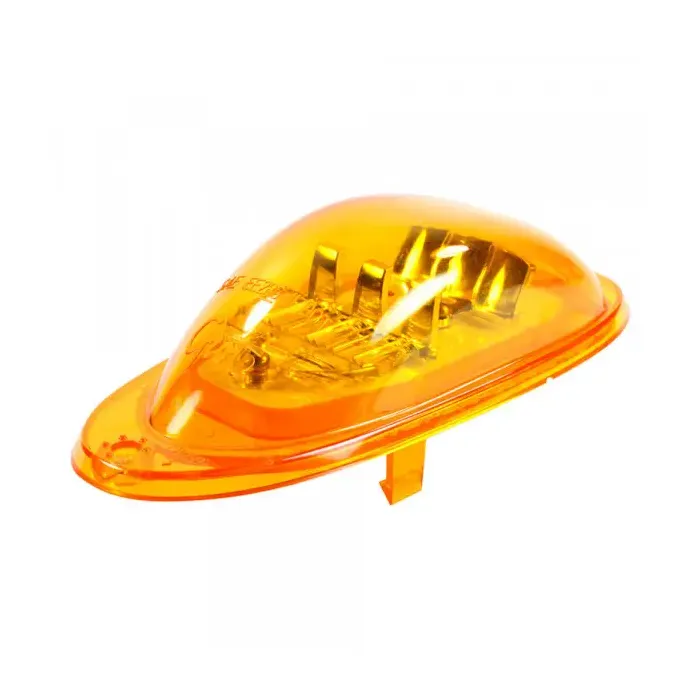

STOP/TURN/TAIL LAMP - YELLOW - LED - SIDE TURN LAMP - OVAL - SURFACE MOUNT - MALE PIN

Maximize your fleet's safety and operational awareness with the Grote 54223 SuperNova® Oval LED Side Turn Marker Light, available now at TruckLightParts.com.

The Grote 54223 is a premium amber signaling solution engineered for mid-ship mounting on heavy-duty trucks and trailers. This 6-inch oval lamp is 50-state legal, meeting all FMVSS 108 and SAE J914 requirements. Designed with a unique lens and reflector system, this light allows the driver to see the turn signal flashing from the cab during operation, providing immediate confirmation that the signal is active. Built with Grote’s elite SuperNova® technology, the internal electronics are fully encapsulated to withstand the most extreme road conditions.

Product Features & Benefits

• Driver-Visible Signaling: Specially engineered optics allow the driver to see the lamp flashing from the vehicle cab, increasing confidence and safety during lane changes.
• Encapsulant Potting Technology: The internal circuit board is completely sealed in a protective resin, shielding electronics from the "triple threat" of moisture, corrosion, and heavy vibration.
• 50-State Legal Compliance: Meets or exceeds FMVSS 108, SAE J914, and California Title 13 requirements for mid-ship side turn and marker functions.
• Integrated Stainless Steel Flange: Features a permanent, theft-resistant stainless steel mounting flange that provides a secure fit and a professional, corrosion-resistant finish.
• Hermetic Lens-to-Housing Seal: A permanent, airtight seal prevents internal fogging and protects the unit from road chemicals, dust, and high-pressure water spray.
• Advanced Pin Connection: Equipped with tin-plated, solid-brass male pin terminals for maximum conductivity and industry-leading resistance to corrosive buildup.
• 10-Year Maintenance-Free Service: Rated for an exceptional service life and backed by Grote’s 10-year warranty, significantly reducing vehicle downtime.

Technical Specifications

• Part Number: 54223
• Series: SuperNova®
• Lighting Technology: LED
• Size: 6" Oval (approx. 7.8" Length with Flange)
• Lens Color: Amber
• Housing Color: Gray
• Material: Polycarbonate Lens & Housing
• Voltage: 12V DC
• Amperage: 0.06A (Marker) / 0.45A (Turn)
• Mounting Type: Stainless Steel Flange Mount
• Connection Type: Male Pin (Standard PL-3 Style)
• Compliance: FMVSS 108 (E, E2, P2); SAE J914; California Title 13
• VMRS Code: 034-003-097
• Warranty: 10 Years
