STOP/TURN/TAIL LAMP - YELLOW - LED - SIDE TURN LAMP - OVAL - SURFACE MOUNT - AMP CONNECTOR

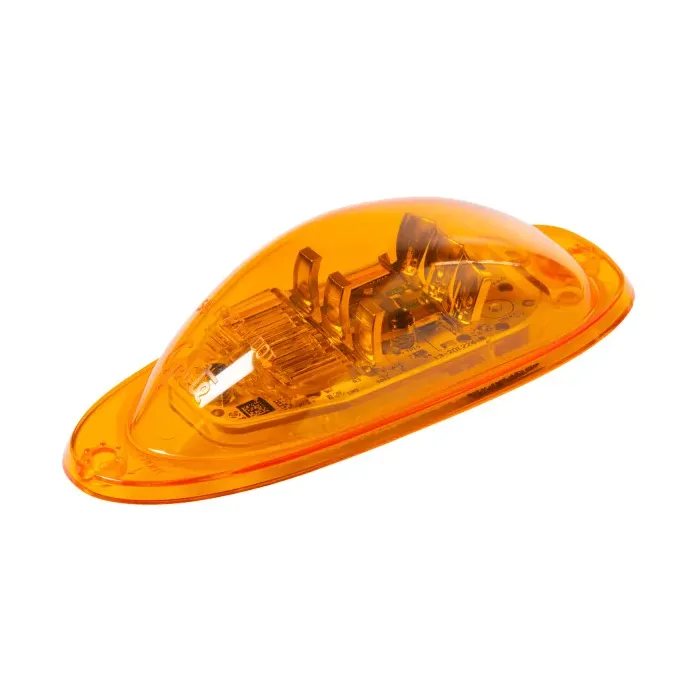

Maximize your vehicle's safety and signaling awareness with the Grote 54233 SuperNova® Oval LED Side Turn Marker Light, available now at TruckLightParts.com.

The Grote 54233 is a high-intensity, amber signaling solution engineered specifically for mid-ship mounting on heavy-duty trucks and trailers. This surface-mount lamp is 50-state legal, meeting all FMVSS 108, SAE J914 (E/E2), and California Title 13 requirements. Designed with a unique single circuit board and reflector system, the 54233 ensures the flashing turn signal is visible to the driver from the cab during operation, providing immediate confirmation that the signal is active. Featuring a specialized Hard Shell connection, this light offers superior protection against the elements and corrosion.

Product Features & Benefits

• Driver Visibility Optics: Engineered so the flashing turn signal remains visible to the driver during operation, increasing safety and confidence during maneuvers.
• Surface-Mount Versatility: Features a low-profile, surface-mount design that allows for quick installation on various vehicle types without the need for large cutouts.
• Encapsulant Potting Technology: The internal electronics are fully encapsulated in a protective resin, shielding the circuit board from moisture, corrosion, and extreme road vibration.
• Secure Hard Shell Connection: Equipped with an integrated Hard Shell termination for a watertight, corrosion-resistant electrical interface.
• Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and protects the unit from road chemicals and high-pressure water spray.
• High-Impact Construction: Manufactured with a rugged polycarbonate lens and housing for maximum resistance to impacts and UV damage.
• 10-Year Warranty: Backed by Grote’s industry-leading 10-year warranty, ensuring years of maintenance-free service and reduced fleet downtime.

Technical Specifications

• Part Number: 54233
• Series: SuperNova®
• Lighting Technology: LED
• Size: 6" Oval (Approx. 5.42" x 2.29")
• Lens Color: Amber
• Housing Color: Amber
• Material: Polycarbonate Lens & Housing
• Voltage: 12V DC
• Amperage: 0.06A (Marker) / 0.45A (Turn)
• Mounting Type: Surface Mount
• Connection Type: Hard Shell
• Compliance: FMVSS 108 (E, E2, P2); SAE J914; California Title 13
• VMRS Code: 034-003-097
• Warranty: 10 Years
