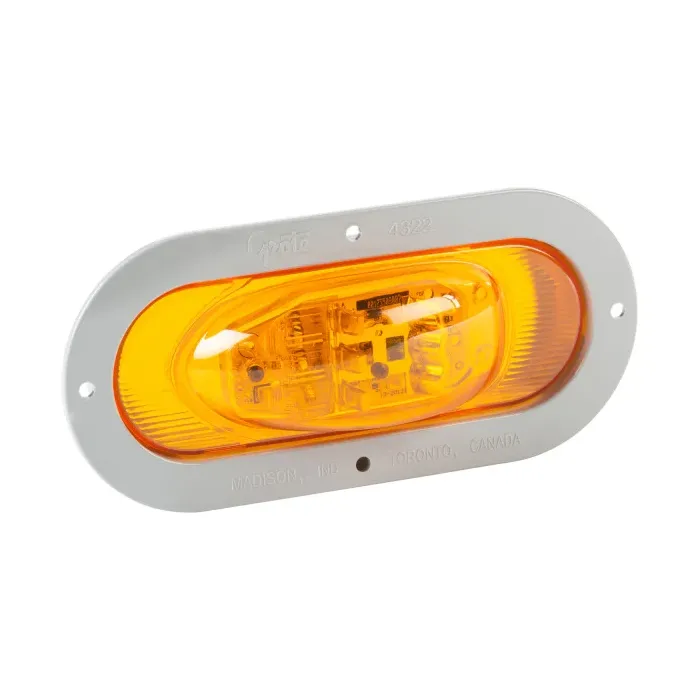

STOP/TURN/TAIL LAMP - YELLOW - LED - SIDE TURN LAMP W/GRAY FLANGE

Maximize your vehicle's safety and signaling awareness with the Grote 54243 SuperNova® Oval LED Side Turn Marker Light, available now at TruckLightParts.com.

The Grote 54243 is a high-performance amber signaling solution specifically engineered for mid-ship mounting on heavy-duty trucks and trailers. This 6-inch oval lamp features a gray theft-resistant flange, providing a permanent, professional-grade mounting solution that secures your lighting investment. Built with Grote’s elite SuperNova® technology, the 54243 is a 50-state legal side-turn signal that meets all FMVSS 108 and SAE J914 requirements. Its specialized optics are designed so the flashing signal is visible to the driver from the cab, providing immediate confirmation of operation during lane changes and turns.

Product Features & Benefits

• Driver-Visible Optics: Unique lens and reflector design ensures the flashing turn signal is visible to the driver from the vehicle cab, enhancing operational safety.
• Theft-Resistant Mounting: Equipped with a permanent gray flange that secures the light directly to the vehicle body, deterring tampering and providing a stable, vibration-proof fit.
• 50-State Legal Compliance: Meets or exceeds FMVSS 108, SAE J914 (E/E2), and California Title 13 requirements for mid-ship side turn and marker functions.
• Encapsulant Potting Technology: The internal circuit board is fully encapsulated in a protective resin, shielding sensitive electronics from the "triple threat" of moisture, corrosion, and road vibration.
• Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and protects the unit from road chemicals and high-pressure water spray.
• Advanced Pin Connection: Features tin-plated, solid-brass male pin terminals for maximum conductivity and industry-leading resistance to corrosive buildup.
• 10-Year Maintenance-Free Service: Rated for an exceptional service life and backed by Grote’s industry-leading 10-year warranty, significantly reducing vehicle downtime.

Technical Specifications

• Part Number: 54243
• Series: SuperNova®
• Lighting Technology: LED
• Size: 6" Oval (Approx. 7.85" Length with Flange)
• Lens Color: Amber
• Housing Color: Gray (Theft-Resistant Flange)
• Material: Polycarbonate Lens & Housing
• Voltage: 12V DC (Operating range up to 13.5V)
• Amperage: 0.06A (Marker) / 0.45A (Turn)
• Mounting Type: Permanent Flange Mount
• Connection Type: Male Pin (Standard PL-3 Style)
• Compliance: FMVSS 108 (E, E2, P2); SAE J914; California Title 13
• VMRS Code: 034-003-097
• Warranty: 10 Years
