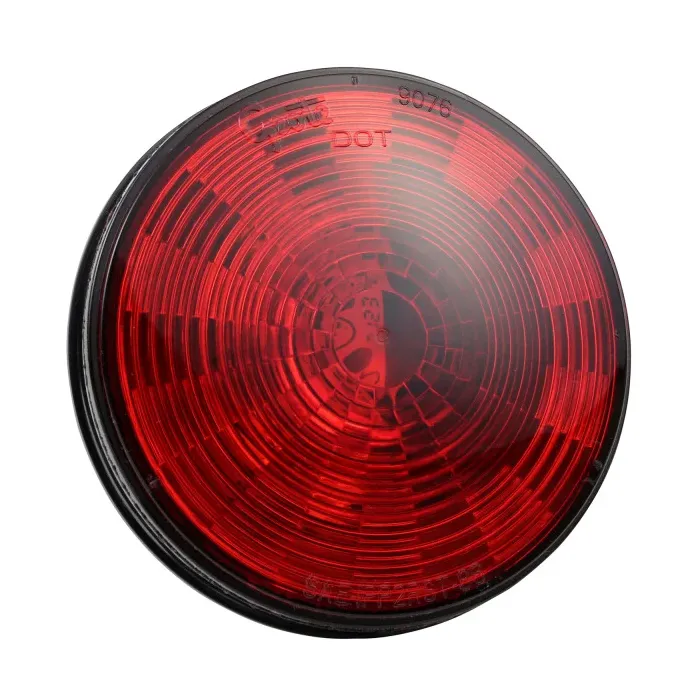

STOP/TURN/TAIL LAMP - RED - 4IN ROUND - FEMALE PIN - 3 DIODE

Maximize your vehicle's safety and value with the Grote 54342 Grote Select™ 4" LED Stop Tail Turn Light, available now at TruckLightParts.com.

The Grote 54342 is a high-performance, cost-effective signaling solution designed specifically for the heavy-duty trucking and trailer industry. Part of the Grote Select™ line, this 4-inch round red lamp provides the long-lasting benefits of LED technology at a competitive price point. Engineered to withstand harsh road conditions, the internal electronics are fully encapsulated in a potting compound to protect against moisture, corrosion, and vibration. Its hermetic lens-to-housing seal ensures that your lighting remains clear and functional, regardless of the weather.

Product Features & Benefits

• Grote Select™ Value: Professional-grade LED performance designed to provide a reliable, budget-friendly alternative for fleet maintenance and owner-operators.
• Encapsulant Potting Technology: The internal circuit board is completely sealed in resin, shielding sensitive components from vibration-induced failure and moisture ingress.
• Hermetic Lens-to-Housing Seal: Features a sonically welded, airtight seal that prevents internal condensation and protects the lamp from road chemicals and high-pressure water spray.
• Standard PL-3 Connection: Equipped with industry-standard male pin terminals for a quick, secure, and corrosion-resistant electrical interface.
• Impact-Resistant Construction: Manufactured with a high-impact polycarbonate lens and housing designed to resist cracking and UV fading over time.
• Energy Efficient: Draws significantly less amperage than traditional incandescent lamps, reducing the load on your vehicle's electrical system and improving battery life.
• Easy Retrofit: Designed to fit standard 4-inch round mounting grommets and brackets, making it a simple "plug-and-go" upgrade.

Technical Specifications

• Part Number: 54342
• Series: Grote Select™
• Lighting Technology: LED
• Size: 4" Round
• Lens Color: Red
• Housing Color: White
• Material: Polycarbonate
• Voltage: 12V DC
• Amperage: 0.03A (Tail) / 0.17A (Stop/Turn)
• Mounting Type: Grommet Mount
• Connection Type: Male Pin (PL-3 Style)
• Compliance: FMVSS 108 (I6, P2, S, T); SAE I6, P2, S, T
• VMRS Code: 034-002-059
• Warranty: 2 Years
