STOP/TURN/TAIL LAMP - 4IN -RED -SUPERNOVA® LED FULL PATTERN - W/AMP CONNECTOR

Enhance your vehicle's rear-signaling visibility with the Grote 54562 SuperNova® 4" Full-Pattern LED Stop Tail Turn Light, available now at TruckLightParts.com.

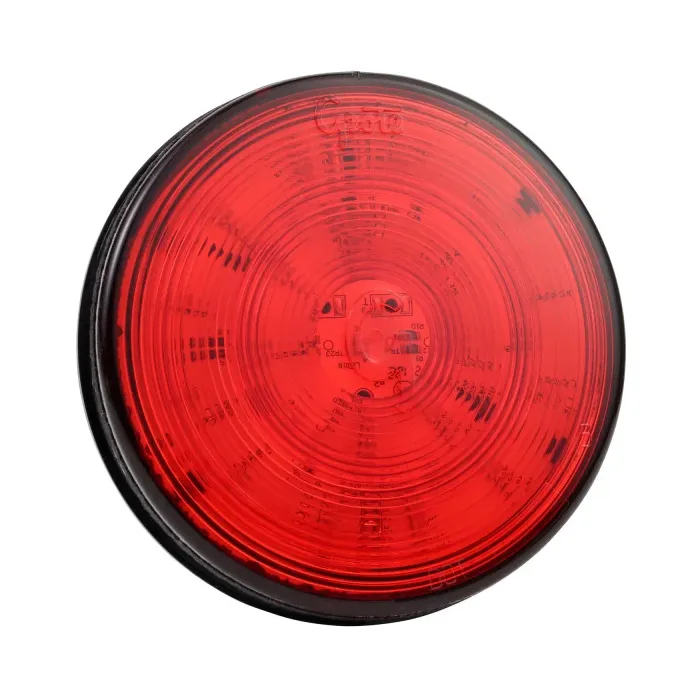

The Grote 54562 is a premium, 4-inch round red signaling lamp designed for maximum clarity and safety. Part of the elite SuperNova® series, this light features a "Full-Pattern" LED layout that ensures a bright, consistent light output across the entire lens surface. Built to withstand the harshest road conditions, the 54562 utilizes Grote’s advanced encapsulant potting technology to seal the internal circuit board against moisture, corrosion, and heavy vibration. Its sleek, low-profile design and durable construction make it the perfect long-term lighting solution for heavy-duty trucks and trailers.

Product Features & Benefits

• Full-Pattern LED Display: Features an edge-to-edge LED arrangement for a bold, uniform light signature that increases visibility and safety during braking and turning.
• Encapsulant Potting Technology: The internal circuit board is fully encapsulated in resin, protecting sensitive electronics from the "triple threat" of moisture, corrosion, and extreme road vibration.
• Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and guards the unit against road chemicals, salt, and high-pressure water spray.
• Advanced Pin Connection: Equipped with tin-plated, solid-brass male pin terminals for maximum conductivity and industry-leading resistance to corrosive buildup.
• Rugged Construction: Manufactured with a high-impact polycarbonate lens and housing designed to resist cracking, UV damage, and harsh environmental exposure.
• Energy Efficient: Delivers high-intensity brightness with significantly lower amperage draw than traditional incandescent lamps, reducing the load on your vehicle's electrical system.
• 10-Year Reliability: Backed by Grote’s industry-leading 10-year warranty, ensuring maintenance-free service and significantly reduced vehicle downtime.

Technical Specifications

• Part Number: 54562
• Series: SuperNova®
• Lighting Technology: LED
• Size: 4" Round
• Lens Color: Red
• Housing Color: White
• Material: Polycarbonate
• Voltage: 12V DC
• Amperage: 0.04A (Tail) / 0.24A (Stop/Turn)
• Mounting Type: Grommet Mount
• Connection Type: Male Pin (Standard PL-3 Style)
• Compliance: FMVSS 108 (I6, P2, S, T); SAE I6, P2, S, T
• VMRS Code: 034-002-059
• Warranty: 10 Years
