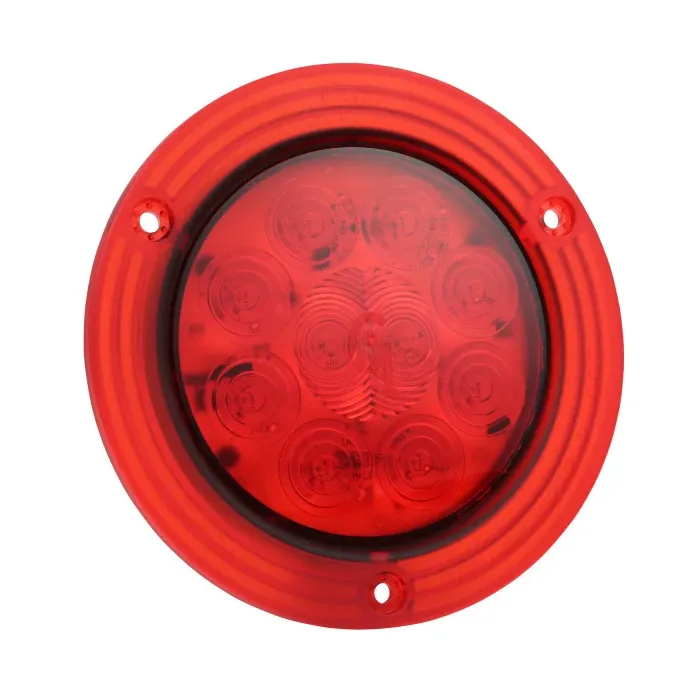

STOP/TURN/TAIL LAMP - 4IN - RED - SUPERNOVA® LED - 10 DIODE W/INTEGRATED FLANGE

Enhance your vehicle's safety and reliability with the Grote 54622 SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Light, available now at TruckLightParts.com.

The Grote 54622 is a professional-grade, multi-function rear signaling solution featuring a distinct 10-diode pattern for superior visibility. Part of the elite SuperNova® series, this lamp is designed to withstand the most punishing road conditions. It features Grote’s advanced encapsulant potting technology, which seals the internal circuit board in a protective resin to defeat moisture, corrosion, and extreme vibration. With its integrated flange mount, this light offers a secure, permanent installation that deters theft and provides a clean, professional finish.

Product Features & Benefits

• 10-Diode Pattern: High-intensity LED arrangement provides a sharp, clear light output for stop, tail, and turn functions, ensuring your vehicle is seen from a distance.
• Integrated Flange Mount: Features a built-in mounting flange for a secure, permanent fit that resists tampering and simplifies installation on truck and trailer bodies.
• Encapsulant Potting Technology: The internal circuit board is fully encapsulated in a protective resin to shield electronics from thermal shock, moisture ingress, and mechanical failure.
• Advanced Pin Connection: Equipped with tin-plated, solid-brass male pin terminals for maximum conductivity and industry-leading resistance to corrosive buildup.
• Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and protects the unit from road chemicals and high-pressure water spray.
• Superior Optics: Engineered with a specialized lens design that spreads light for maximum dispersion and wide-angle visibility.
• 10-Year Reliability: Backed by Grote’s industry-leading 10-year warranty, providing maintenance-free service and significantly reduced vehicle downtime.

Technical Specifications

• Part Number: 54622
• Series: SuperNova®
• Lighting Technology: LED (10-Diode)
• Size: 4" Round
• Lens Color: Red
• Housing Color: Gray
• Material: Acrylic Lens / PC/ABS Housing
• Voltage: 12V DC
• Amperage: 0.03A (Tail) / 0.24A (Stop/Turn)
• Mounting Type: Integrated Flange Mount
• Connection Type: Male Pin (Standard PL-3 Style)
• Compliance: FMVSS 108 (I, S, T); SAE I, S, T
• VMRS Code: 034-002-059
• Warranty: 10 Years
