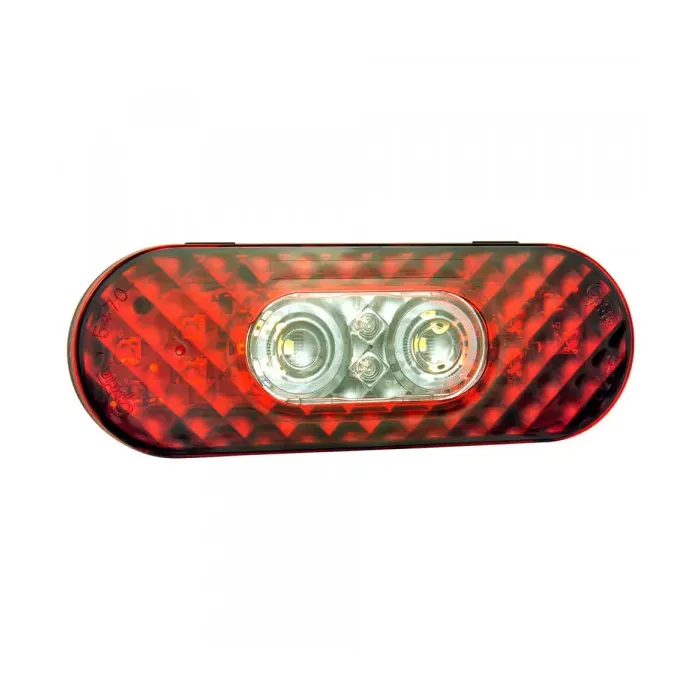

STOP/TURN/TAIL LAMP - 6IN - RED/CLEAR - LED - OVAL - W/INTEGRATED BACK-UP - FEMALE PIN

Maximize your vehicle's safety and streamline your lighting configuration with the Grote 54682 6" Oval LED Stop Tail Turn Light with Integrated Back-up, available now at TruckLightParts.com.

The Grote 54682 is a revolutionary all-in-one signaling solution designed for heavy-duty trucks and trailers. By combining stop, tail, and turn functions with a high-intensity integrated backup light into a single 6-inch oval footprint, this lamp eliminates the need for extra holes and separate reverse light installations. Featuring a theft-resistant flange mount, the 54682 provides a secure, permanent installation that protects your investment. Its hermetically sealed lens and housing protect against the elements, ensuring long-lasting performance in the most demanding environments.

Product Features & Benefits

• Integrated Back-up Function: Combines rear signaling and reverse lighting into one standard 6-inch oval lamp, reducing installation time and vehicle clutter.
• Theft-Resistant Flange: Features a permanent mounting flange that secures the light directly to the vehicle body, deterring tampering and providing a stable, professional fit.
• Space-Saving Design: Fits standard 6-inch oval mounting locations, allowing you to add a backup light to your vehicle without the need for additional cutouts.
• Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and protects the unit from road chemicals, salt, and high-pressure water spray.
• Rugged Polycarbonate Construction: Manufactured with a high-impact lens and housing designed to resist cracking, UV damage, and harsh environmental exposure.
• Superior Connectivity: Equipped with a secure, watertight Hard Shell termination for a corrosion-resistant electrical interface.
• Safety Compliance: Fully compliant with FMVSS 108 and SAE standards for stop, tail, turn, and backup functions.

Technical Specifications

• Part Number: 54682
• Lighting Technology: LED
• Size: 6" Oval (7.85" Length with Flange)
• Lens Color: Red / Clear
• Housing Color: Gray (Flange)
• Material: Polycarbonate
• Voltage: 12V DC
• Amperage: 0.03A (Tail) / 0.17A (Stop/Turn) / 0.28A (Back-up)
• Mounting Type: Permanent Flange Mount
• Connection Type: Hard Shell
• Compliance: FMVSS 108 (I6, P2, S, T, R); SAE I6, P2, S, T, R
• VMRS Code: 034-002-013
• Warranty: 2 Years
