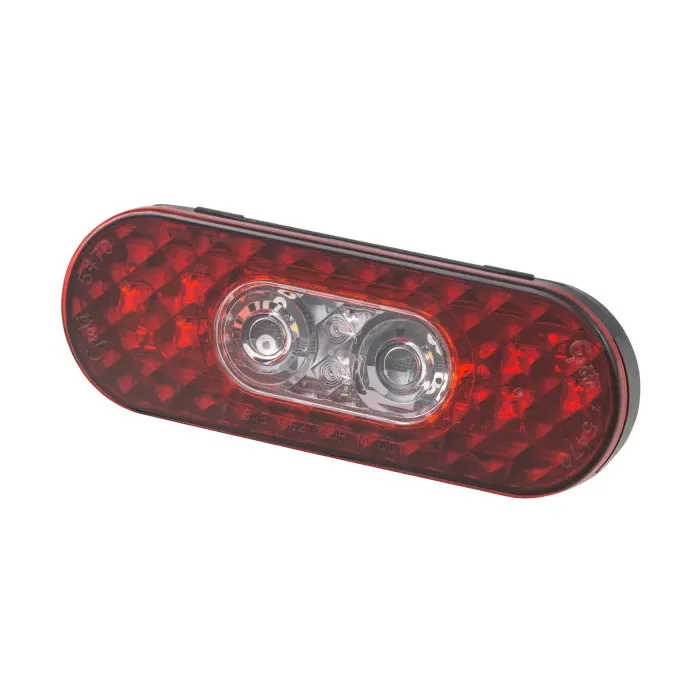

STOP/TURN/TAIL LAMP - 6IN - RED/CLEAR - LED - OVAL - W/INTEGRATED BACK-UP - AMP CONNECTOR

Maximize your vehicle's safety and simplify your lighting configuration with the Grote 54702 6" Oval LED Stop Tail Turn Light with Integrated Back-up, available now at TruckLightParts.com.

The Grote 54702 is a versatile, all-in-one signaling solution designed for heavy-duty trucks and trailers. By combining stop, tail, and turn functions with a high-intensity integrated backup light into a single 6-inch oval footprint, this lamp eliminates the need for extra holes and separate reverse light installations. Built for professional-grade durability, the 54702 features a hermetically sealed lens and housing to protect against environmental damage, ensuring consistent performance in the most demanding hauling conditions.

Product Features & Benefits

• Integrated Back-up Function: Combines rear signaling and reverse lighting into one standard 6-inch oval lamp, reducing installation time and providing a cleaner look.
• Space-Saving Design: Fits standard 6-inch oval grommets and brackets, allowing you to add a backup light to your vehicle without the need for additional body cutouts.
• Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and protects the unit from road chemicals, salt, and high-pressure water spray.
• Rugged Polycarbonate Construction: Manufactured with a high-impact lens and housing designed to resist cracking, UV damage, and harsh road debris.
• Standard 4-Pin Connection: Features a 4-pin connection for a secure electrical interface that manages all signaling and backup functions through a single point.
• Energy Efficient: Advanced LED technology provides high-intensity brightness with significantly lower amperage draw than traditional incandescent lamps.
• Safety Compliance: Fully compliant with FMVSS 108 and SAE standards for stop, tail, turn, and backup functions.

Technical Specifications

• Part Number: 54702
• Lighting Technology: LED
• Size: 6" Oval
• Lens Color: Red / Clear
• Housing Color: Black
• Material: Polycarbonate
• Voltage: 12V DC
• Amperage: 0.03A (Tail) / 0.17A (Stop/Turn) / 0.28A (Back-up)
• Mounting Type: Grommet Mount
• Connection Type: 4-Pin
• Compliance: FMVSS 108 (I6, P2, S, T, R); SAE I6, P2, S, T, R
• VMRS Code: 034-002-013
• Warranty: 2 Years
