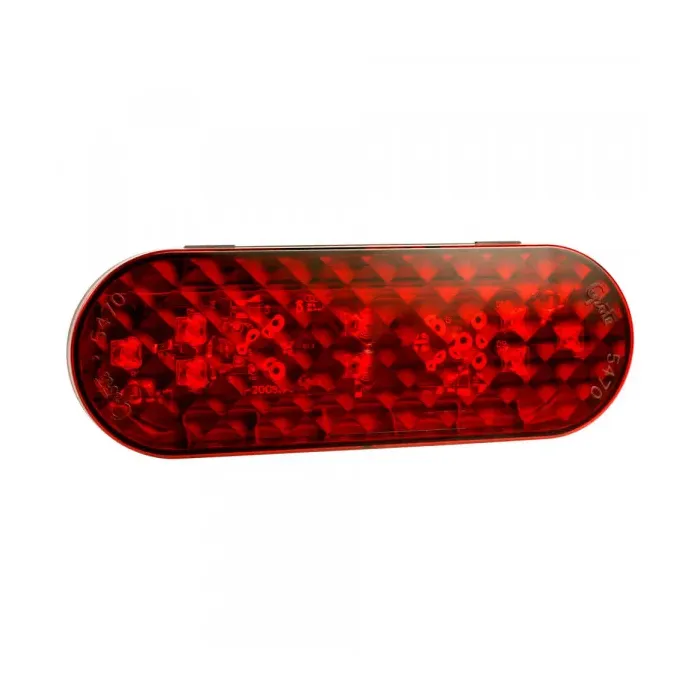

STOP/TURN/TAIL LAMP - 6IN - RED - LED - OVAL - W/O INTEGRATED BACK-UP - AMP CONNECTOR

Maximize your vehicle's safety and streamline your lighting configuration with the Grote 54722 6" Oval LED Stop Tail Turn Light with Integrated Back-up, available now at TruckLightParts.com.

The Grote 54722 is a revolutionary all-in-one signaling solution designed for the heavy-duty trucking industry. By combining stop, tail, and turn functions with a high-intensity integrated backup light into a single 6-inch oval footprint, this lamp eliminates the need for separate reverse light installations and extra body cutouts. Featuring a theft-resistant flange mount, the 54722 provides a secure, permanent installation that protects your investment from tampering and vibration.

Product Features & Benefits

• Integrated Back-up Function: Combines rear signaling and reverse lighting into one standard 6-inch oval lamp, reducing installation time and vehicle clutter.
• Theft-Resistant Flange: Features a permanent gray mounting flange that secures the light directly to the vehicle body, providing a stable, professional, and tamper-proof fit.
• Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and protects the unit from road chemicals, salt, and high-pressure water spray.
• Space-Saving Efficiency: Fits standard 6-inch oval mounting locations, allowing you to add a backup light to your vehicle without the need for additional holes.
• Rugged Polycarbonate Construction: Manufactured with a high-impact lens and housing designed to resist cracking, UV damage, and harsh environmental exposure.
• Advanced 4-Pin Connection: Equipped with a secure 4-pin termination for a reliable electrical interface that manages all signaling and backup functions.
• Safety Compliance: Fully compliant with FMVSS 108 and SAE standards for stop, tail, turn, and backup functions.

Technical Specifications

• Part Number: 54722
• Lighting Technology: LED
• Size: 6" Oval (Approx. 7.85" Length with Flange)
• Lens Color: Red / Clear
• Housing Color: Gray (Flange)
• Material: Polycarbonate Lens & Housing
• Voltage: 12V DC
• Amperage: 0.03A (Tail) / 0.17A (Stop/Turn) / 0.28A (Back-up)
• Mounting Type: Permanent Flange Mount
• Connection Type: 4-Pin
• Compliance: FMVSS 108 (I6, P2, S, T, R); SAE I6, P2, S, T, R
• VMRS Code: 034-002-013
• Warranty: 2 Years
