STOP/TURN/TAIL LAMP - 6IN - RED - LED - OVAL - W/O INTEGRATED BACK-UP - MALE PIN

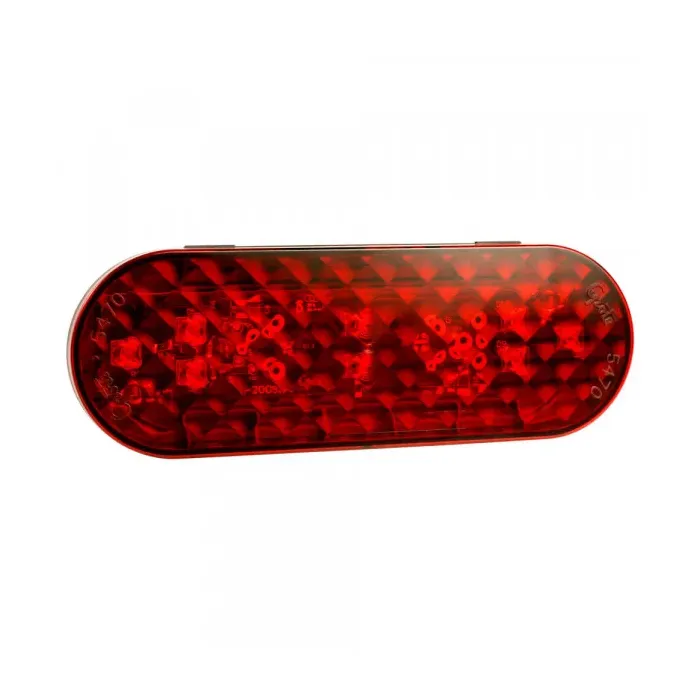

Streamline your vehicle's rear lighting with the Grote 54752 6" Oval LED Stop Tail Turn Light with Integrated Back-up, now available at TruckLightParts.com.

The Grote 54752 is a versatile, all-in-one signaling solution designed for heavy-duty trucks, trailers, and specialized vehicles. By combining stop, tail, and turn functions with a high-intensity integrated backup light into a single 6-inch oval footprint, this lamp reduces vehicle clutter and installation time. Its thin-profile design minimizes the risk of impact damage, while the symmetrical layout ensures legal compliance at any mounting angle. Built for professional-grade longevity, the 54752 offers a seamless "plug-and-go" upgrade that lowers maintenance costs and inventory overhead.

Product Features & Benefits

• Integrated Back-up Function: Combines rear signaling and reverse lighting into one standard 6-inch oval housing, eliminating the need for separate backup lamps.
• Thin Profile Engineering: The low-profile design sits closer to the vehicle body, significantly reducing the chance of external impact damage from debris or loading docks.
• Industry-Standard Fit: Designed to fit existing 6-inch oval mounting grommets, brackets, and flanges, making it an easy retrofit for most fleet applications.
• Symmetrical Optics: Innovative lens design meets legal lighting requirements at any mounting angle—horizontal, vertical, or 45 degrees.
• Male Pin Termination: Features industry-standard male pin (PL-3 style) terminals for a secure, moisture-resistant electrical connection.
• Energy Efficient LED Technology: Delivers high-intensity brightness with much lower amperage draw than incandescent lamps, reducing strain on the vehicle’s electrical system.
• 10-Year Maintenance-Free Service: Backed by Grote’s industry-leading 10-year warranty, ensuring long-term reliability and fewer replacements.

Technical Specifications

• Part Number: 54752
• Lighting Technology: LED
• Size: 6" Oval
• Lens Color: Red
• Material: High-Impact Acrylic Lens
• Voltage: 12V DC
• Amperage: 0.13A (Stop/Tail) / 0.17A (Turn)
• Mounting Type: Grommet or Bracket Mount
• Connection Type: Male Pin (PL-3 Style)
• Compliance: FMVSS 108 (I, S, T, R); SAE I, S, T, R
• VMRS Code: 034-002-059
• Warranty: 10 Years
