- Full-Pattern LED Display: Features a comprehensive diode arrangement that fills the entire lens with light, providing a bold and unmistakable signal to other drivers.
- Encapsulant Potting Technology: The internal electronics are fully embedded in a protective resin, shielding the light from the "triple threat" of thermal shock, moisture, and vibration.
- Hermetic Lens-to-Housing Seal: A sonically welded, airtight seal prevents internal fogging and protects the unit from road chemicals and high-pressure water spray.
- Superior Conductivity: Equipped with tin-plated, solid-brass male pin terminals for maximum electrical performance and industry-leading resistance to corrosive buildup.
- Rugged Construction: Built with a high-impact polycarbonate lens and housing designed to resist cracking, UV fading, and harsh environmental exposure.
- High Efficiency & Low Draw: Delivers high-intensity amber light with significantly lower amperage draw than traditional incandescent lamps.
- 10-Year Maintenance-Free Service: Backed by Grote’s industry-leading 10-year warranty, ensuring long-term reliability and reduced fleet maintenance costs.
SKU
55103
Manufactures SKU
GROTE 55103

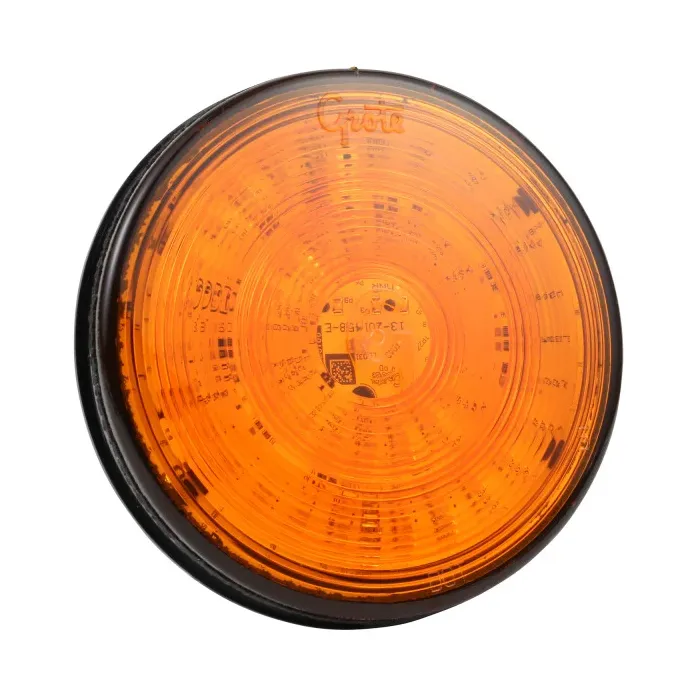

Grote 55103 SuperNova® 4" Full-Pattern LED Stop Tail Turn Light
$58.01
EA
The Grote 55103 is a premium amber signaling solution designed for the rigorous demands of the heavy-duty trucking industry. As part of the SuperNova® Full-Pattern series, this lamp provides a consistent, edge-to-edge light output that eliminates "hot spots," ensuring maximum visibility for turning and hazard signaling. Engineered with Grote’s advanced encapsulant potting technology, the internal circuit board is completely sealed to protect against moisture, corrosion, and extreme road vibration.
Key Details
Common Size
4
Current Amp
0.24
Housing Color
Black
Housing Material
Polycarbonate
Lens Color
Yellow
Lens Height
4"
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
4"
Lighting Technology
LED
Mount Type
Grommet Mount
Voltage
12 to 24V DC
Compliance Family
FMVSS 108 (I6, P2, S, T); SAE I6, P2, S, T
VMRS
034-002-059
Warranty
10-Year
Shipping Weight (lbs)
0.410000
Total Height
1.25
Total Width
4.25
