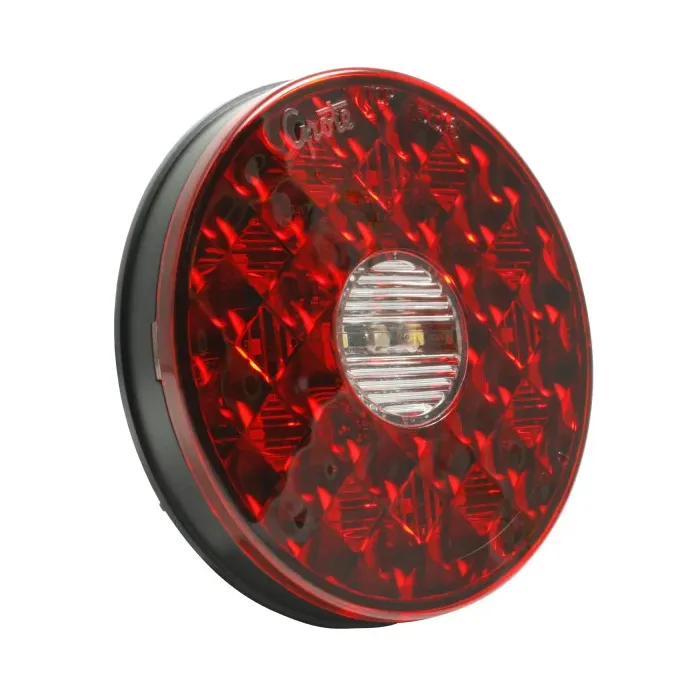

STOP/TURN/TAIL LAMP - 4IN - RED - LED - ROUND - W/INTEGRATED BACK-UP - AMP CONNECTOR

Maximize your vehicle's safety and simplify your lighting maintenance with the Grote 55162 4" Round LED Stop Tail Turn Light with Integrated Backup, available now at TruckLightParts.com.

The Grote 55162 is a high-performance, all-in-one signaling solution that integrates stop, tail, and turn functions with a high-intensity backup light into a single, industry-standard 4-inch round footprint. This innovative patented design eliminates the need for separate reverse light installations, saving time and reducing the number of holes required in the vehicle body. Engineered to meet the strict electrical requirements of major Class 8 truck manufacturers, the 55162 features a robust laser-weld construction and a high-impact polycarbonate lens to withstand the most punishing road conditions.

Product Features & Benefits

• Innovative All-In-One Design: Combines Stop, Tail, Turn, and Backup functions into one standard-sized lamp, reducing vehicle clutter and installation complexity.
• Class 8 Compatibility: Specifically designed to meet the electrical specifications and performance standards of all major heavy-duty truck manufacturers.
• Laser-Weld Construction: Features a robust laser-welded seal between the lens and housing for maximum durability and resistance to moisture intrusion.
• Superior Electrical Protection: Built-in safeguards protect against reverse voltage, over-voltage, electrical transients, and overheating for long-term reliability.
• Dedicated High-Compliance LEDs: Utilizes dedicated LEDs for Stop and Tail functions to ensure consistent compliance with safety regulations and maximum visibility.
• Stainless Steel Flange Assembly: Assembled with a high-quality stainless steel flange for a premium look and enhanced corrosion resistance.
• 10-Year Maintenance-Free Service: Backed by Grote’s industry-leading 10-year warranty, providing peace of mind and significantly lower lifetime maintenance costs.

Technical Specifications

• Part Number: 55162
• Lighting Technology: LED
• Size: 4" Round
• Lens Color: Red / Clear
• Housing Color: Black
• Material: Polycarbonate Lens / PC-ABS Housing
• Voltage: 12V DC
• Amperage: 0.08A - 0.31A
• Mounting Type: Grommet or Bracket Mount
• Connection Type: Integrated 4-Pin Hard Shell Termination
• Compliance: FMVSS 108 (I, S, T, R2); SAE I, S, T, R2
• VMRS Code: 034-002-059
• Warranty: 10 Years
