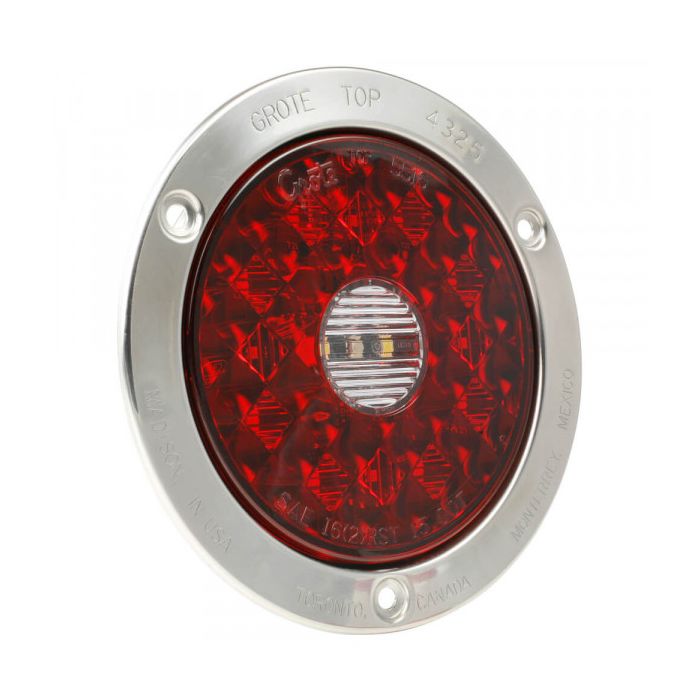

STOP/TURN/TAIL LAMP - 4IN - RED - LED - ROUND - W/INTEGRATED BACK-UP - AMP CONNECTOR - W/STAINLESS STEEL FLANGE

Maximize your vehicle's safety and streamline your lighting maintenance with the Grote 55202 4" Round LED Stop Tail Turn Light with Integrated Backup, available now at TruckLightParts.com.

The Grote 55202 is a premium, all-in-one signaling solution that integrates stop, tail, and turn functions with a high-intensity backup light into a single, industry-standard 4-inch round footprint. This innovative, patented design eliminates the need for separate reverse light installations, saving time and reducing the number of holes required in the vehicle body. Engineered to meet the strict electrical requirements of major Class 8 truck manufacturers, the 55202 features robust laser-weld construction and a high-impact polycarbonate lens to withstand the most punishing road conditions.

Product Features & Benefits

• Innovative All-In-One Design: Combines Stop, Tail, Turn, and Backup functions into one standard 4" lamp, reducing vehicle clutter and installation complexity.
• Class 8 Compatibility: Specifically designed to meet the electrical specifications and performance standards of major heavy-duty truck manufacturers.
• Laser-Weld Construction: Features a robust laser-welded seal between the lens and housing for maximum durability and resistance to moisture intrusion.
• Superior Electrical Protection: Built-in safeguards protect against reverse voltage, over-voltage, electrical transients, and overheating for long-term reliability.
• High-Compliance Optics: Utilizes dedicated LEDs for Stop and Tail functions to ensure consistent compliance with safety regulations and maximum visibility.
• Theft-Deterrent Flange: Assembled in a permanent-mount flange for a secure, professional finish that helps prevent unauthorized removal.
• 10-Year Maintenance-Free Service: Backed by Grote’s industry-leading 10-year warranty, providing peace of mind and significantly lower lifetime maintenance costs.

Technical Specifications

• Part Number: 55202
• Lighting Technology: LED
• Size: 4" Round
• Lens Color: Red / Clear
• Housing Color: Black
• Material: Polycarbonate Lens / PC-ABS Housing
• Voltage: 12V DC
• Amperage: 0.08A - 0.31A
• Mounting Type: Permanent Flange Mount
• Connection Type: Integrated 4-Pin Hard Shell Termination
• Compliance: FMVSS 108 (I, S, T, R2); SAE I, S, T, R2
• VMRS Code: 034-002-059
• Warranty: 10 Years
