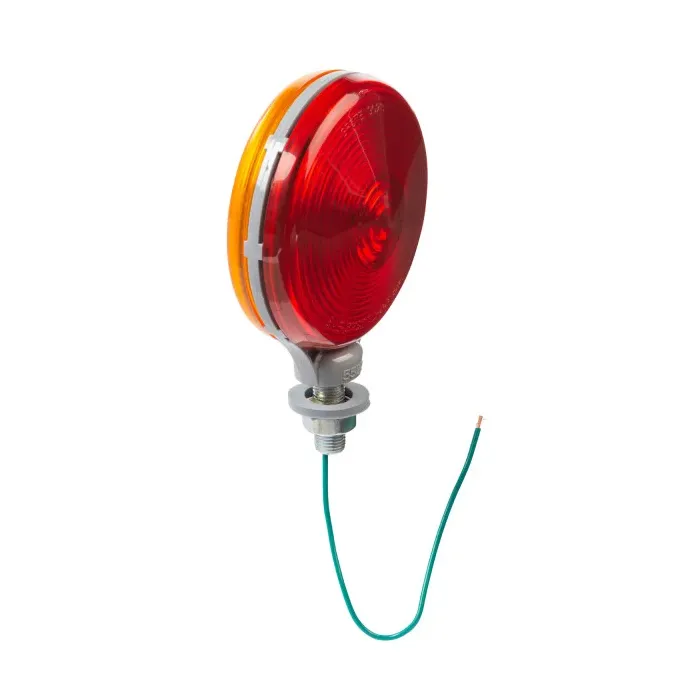

STOP/TURN/TAIL LAMP - RED/YELLOW YELLOW - THIN-LINE - DOUBLE-FACE - SINGLE CONTACT

Improve your vehicle's visibility and safety with the Grote 55220 Thin-Line Double-Face Light, available now at TruckLightParts.com.

The Grote 55220 is a professional-grade, dual-sided signaling solution designed for heavy-duty trucks and trailers. This "Thin-Line" pedestal-mount lamp features a double-face design with high-visibility red and amber lenses, making it an essential component for turn signals and hazard lighting. Built with Grote’s legendary durability, it features a rugged polycarbonate housing and a protective O-ring seal to safeguard internal components from moisture, dust, and road vibration. Its streamlined profile and versatile mounting make it the perfect choice for professional fleets looking for reliable, long-lasting performance.

Product Features & Benefits

• Double-Face Visibility: Features dual-sided lenses (Red/Amber) to provide clear signaling from both the front and rear of the vehicle, enhancing overall road safety.
• Thin-Line Profile: The sleek, low-profile design reduces the risk of impact damage while providing a modern, professional look for your equipment.
• Easy Maintenance: Designed with snap-on lenses that allow for quick bulb replacements without the need for specialized tools, reducing vehicle downtime.
• Superior Environmental Protection: Includes a molded-in baffle and a molded-in O-ring to create a weather-resistant seal against the elements.
• Abrasion-Resistant Wiring: The wire exit is equipped with a protective grommet to prevent the wire jacket from chafing or wearing down over time.
• Rugged Construction: Manufactured with high-impact acrylic lenses and a durable polycarbonate housing to withstand the harshest trucking environments.
• Universal Pedestal Mount: Features a standard pedestal base for easy installation on fenders, bumpers, or specialized brackets.

Technical Specifications

• Part Number: 55220
• Series: Thin-Line
• Lighting Technology: Incandescent
• Size: 4 1/4" Round
• Lens Color: Red / Amber
• Housing Color: Gray
• Material: Acrylic Lens / Polycarbonate Housing
• Voltage: 12V DC
• Amperage: 2.1A
• Mounting Type: Pedestal Mount
• Connection Type: Blunt Cut (Single Contact)
• Bulb Type: 1156, 32 CP
• Compliance: FMVSS 108 (I)
• VMRS Code: 034-002-013
• Warranty: 1 Year
