STOP/TURN/TAIL LAMP - RED - 2-STUD LAMP W/PIGTAIL - DRIVER SIDE

Maximize your vehicle's visibility and road safety with the Grote 55420 Two-Stud Double-Face Light with Pigtail, available now at TruckLightParts.com.

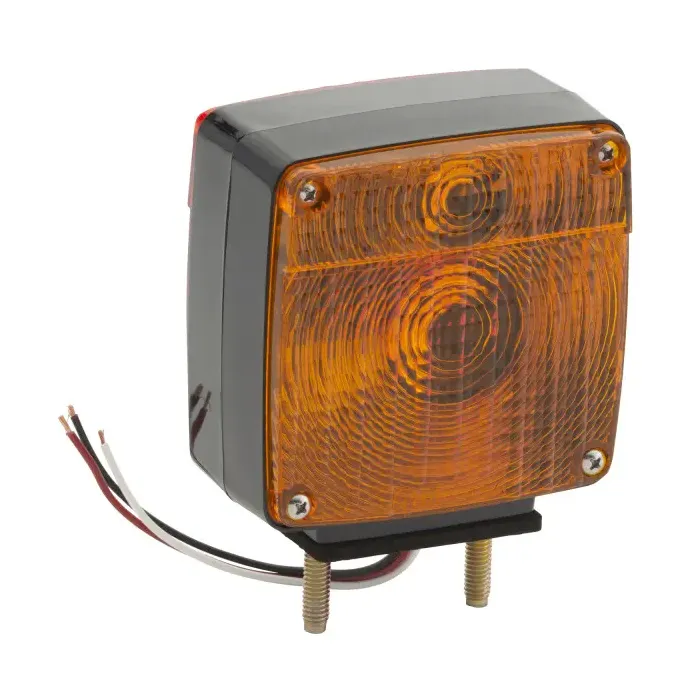

The Grote 55420 is a professional-grade, dual-sided signaling solution designed for heavy-duty trucks, trailers, and agricultural equipment. This pedestal-style lamp features high-visibility Red and Amber lenses, serving as a comprehensive stop, tail, and turn signal. Engineered for maximum durability, it features a rugged black housing and a secure two-stud mounting system that provides a stable, vibration-resistant fit on fenders or bumpers. With its integrated pigtail and easy-to-service design, the 55420 is a reliable choice for fleets that demand long-lasting performance.

Product Features & Benefits

• Double-Face Signaling: Features dual-sided lenses (Red for rear/Amber for front) to provide clear stop, tail, and turn indications from both directions.
• Integrated Pigtail: Comes equipped with a pre-installed pigtail for a faster, more reliable electrical connection, simplifying your installation process.
• Rugged Two-Stud Mount: The heavy-duty two-stud design ensures a stable, permanent mounting on fenders or brackets, even during extreme road vibration.
• Serviceable Design: Designed with snap-on lenses that allow for quick bulb (1157) or lens replacements without the need for specialized tools.
• Durable Construction: Manufactured with high-impact acrylic lenses and a corrosion-resistant housing built to withstand road debris and harsh weather.
• Professional Aesthetic: The sleek black housing offers a clean, versatile look that fits both modern fleets and vintage equipment.
• Safety Compliance: Fully compliant with FMVSS 108 and SAE standards for stop, tail, and turn signaling functions.

Technical Specifications

• Part Number: 55420
• Lighting Technology: Incandescent
• Lens Color: Red / Amber
• Housing Color: Black
• Material: Acrylic Lens / Polycarbonate Housing
• Voltage: 12V DC
• Amperage: 2.1A (Stop/Turn) / 0.59A (Tail)
• Mounting Type: Two-Stud Mount
• Connection Type: Integrated Pigtail (Blunt Cut)
• Bulb Type: 1157, 32/3 CP
• Compliance: FMVSS 108 (I, S, T)
• VMRS Code: 034-002-013
• Warranty: 1 Year
