DOME/INTERIOR LAMP - CLEAR - SQUARE WITH SWITCH

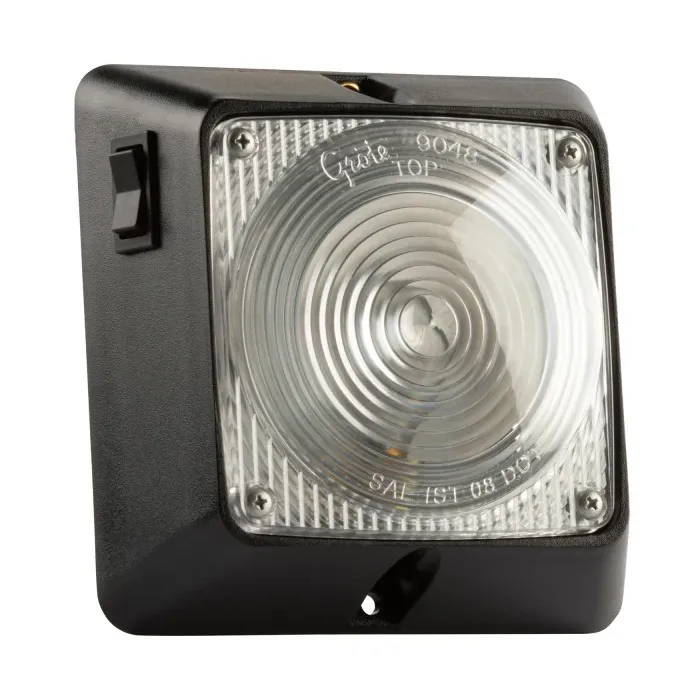

Grote 61221 - Square Surface Mount Dome Light with 3-Position Switch – Clear/Black

Versatile Interior Lighting with Custom Intensity The Grote 61221 is a robust, square surface-mount dome light designed to provide reliable overhead illumination for truck cabs, RVs, and utility vehicle interiors. What sets this model apart is its integrated 3-position switch, which gives you localized control over light intensity. Whether you need a soft glow for a sleeper berth or bright, focused light for cargo management, this lamp delivers exactly what the job requires.

Variable Output for Every Situation This high-utility lamp features a dual-intensity bulb system (standard #1016 bulb) that allows for three modes:

• Low (6 CP): Ideal for ambient lighting or saving battery power.
• High (21 CP): Provides maximum brightness for detailed tasks.
• Off: Full manual control at the source.

Built to Retrofit and Last Engineered with a large footprint, the Grote 61221 is large enough to cover most existing holes, making it the perfect choice for replacing older or damaged interior fixtures without leaving unsightly marks or needing complex bodywork. Constructed with a high-impact polycarbonate lens and housing, this unit is shatter-proof and corrosion-resistant, ensuring a long service life in demanding environments.

Key Features:

• 3-Position Toggle Switch: Choose between Low (6 CP), High (21 CP), or Off.
• Large Footprint: Easily hides old mounting holes for a clean, professional retrofit.
• Surface Mount Design: Simple screw-mount installation requires no large cutouts.
• Durable Materials: Rugged polycarbonate lens and black housing resist heat and impact.
• Universal Application: Ideal for heavy-duty trucks, sleeper cabs, utility trailers, and RVs.
• Easy Wiring: Standard 1-wire, blunt-cut hardwire connection for fast installation.

Technical Specifications

• Brand: Grote
• Part Number: 61221
• Light Source: Incandescent (Bulb #1016)
• Intensity: Variable (6 CP / 21 CP)
• Color: Clear Lens / Black Housing
• Material: Polycarbonate
• Dimensions: 5.88" L x 5.25" W x 1.63" H
• Voltage: 12V DC
• Amperage: 1.5A
• Mounting Type: Surface Screw Mount
• Connection: Blunt Cut / Hardwired
• VMRS Code: 034-004-083
• Warranty: 1-Year Limited
